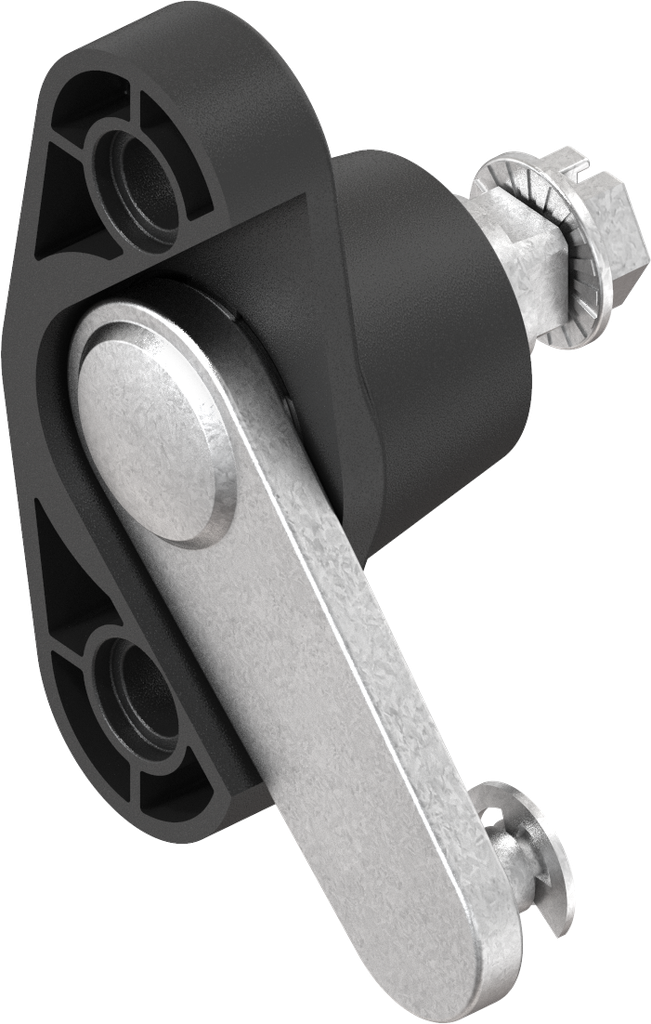

Vergrendeling met draai-span-functie voor meerpuntsvergrendeling, rechter uitvoering, polyamide zwart en GD-Zn (Zamak); 1121-U203
voor zwenkgrepen, kwartslagsloten en HVAC-installaties
Voordelen van het product:
- Compression function
- Locking system and cut out independent of compression latch system
- Corner guide can be used for additional locks in transverse installation
- High closing comfort
- Patented
Productopmerking:
Locking point for compression latch system
Right version for (A) swinghandle with GH = 18 and (C) HVACR systems with modular locking system
Left version for (B) quarter turn with GH = 18 with classic opening direction from 9 to 12 o'clock
For systems with corner guide, the connecting rods must be adapted to the respective door height.
Montageinstructie:
Locking point for weld stud M6 x 16 or blind rivet
Bestel-/rekenvoorbeeld:
Compression value calculation example 1:
Locking point 1121-U203 and - U204 = 4 mm
Cam e.g. 1000-17 = 3 mm
Ramp 1000-U858 = 4 mm
Total compression value = 11 mm
Compression value calculation example 2:
Locking point 1121-U203 and -U204 = 4 mm
Roller cam big 1000-U897 = 10 mm
Ramp 1000-U858 = 4mm
Total compression value = 18 mm
