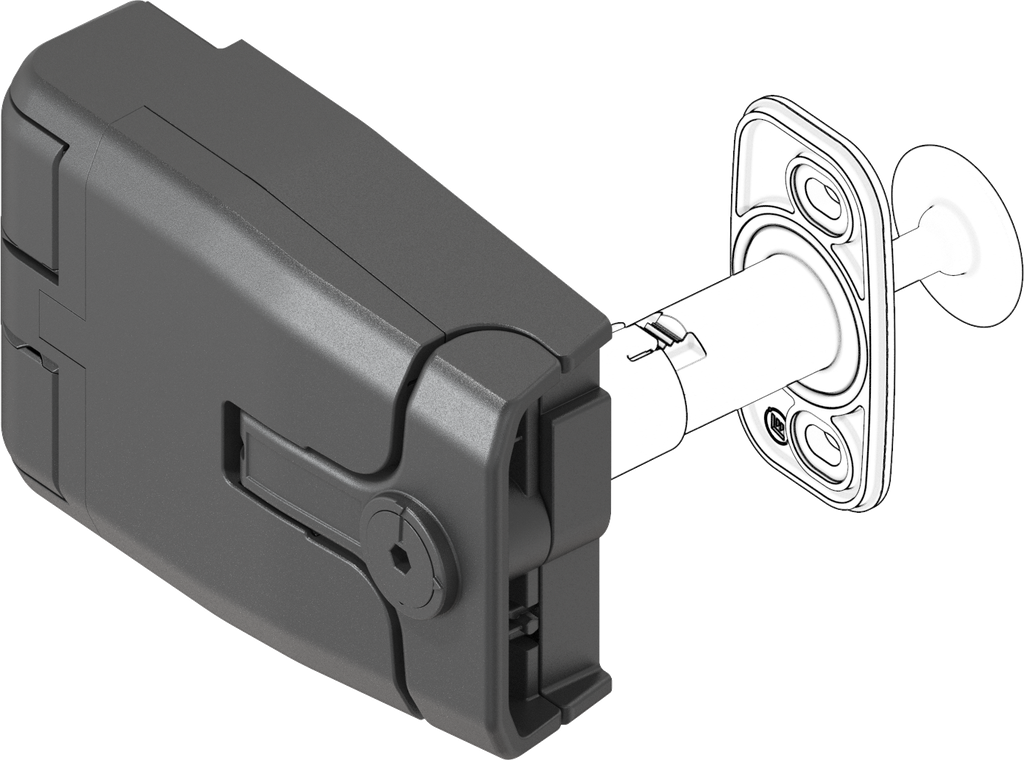

Afsluitbaar scharnier zonder overdrukbeveiliging bediening inbus SW 4, polyamide GF zwart; 1091-U190

• The contact pressure of the closed door can be adjusted by 3 mm during operation
• Due to the favourable centre of rotation of the handle a compression of the seal of 5 mm is possible with low opening and closing force
• The door / panel can be removed by unlatching the handles on both sides
• 3D adjustable (tolerance compensation)
• Latch-Hinge can be mounted as one piece with the door / panel in place
Right or left hinged
• Hinge 180° opening angle
Optionally, available with safety function "pressure relief" 1x per locking side
• Patented
• ATEX compliant explosion protection version available on request

① = Centre of rotation
② = Screws hexagon female SW 4 for height adjustment; compression adjustable on frame part
③ = View without screw covers
④ = Cut out front
⑤ = Cut out back
