Vierkantadapter, Staal verzinkt

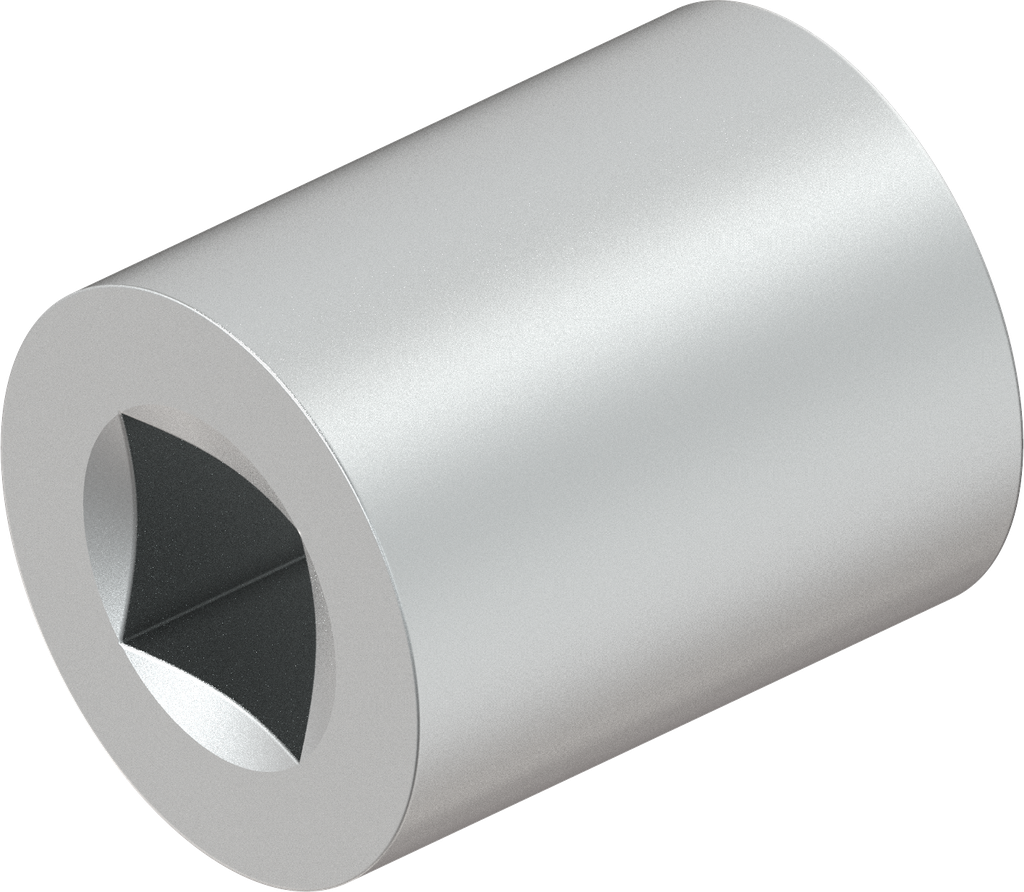

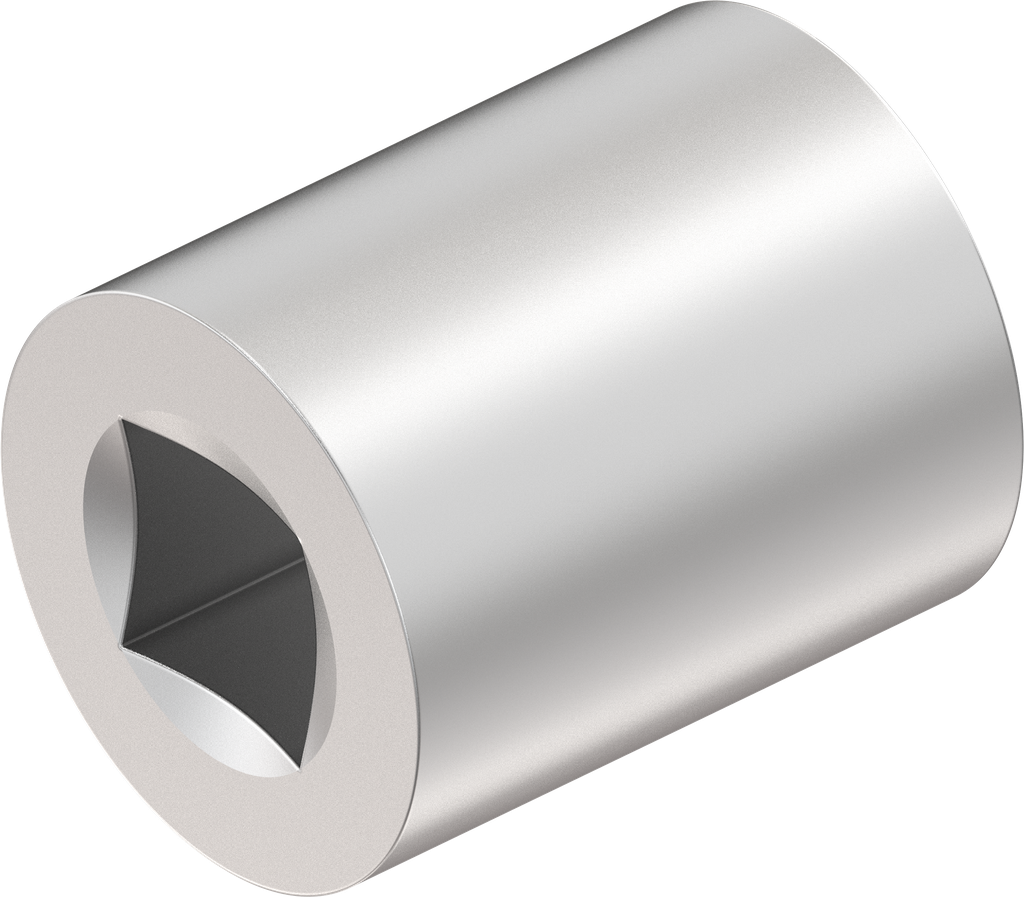

Koppelstuk, Aluminium
Productopmerking:
The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.
1 = e.g. tube Ø 30x1.5
2 = Square adapter
3 = Coupling piece
4 = Inside handle
Adapter 1001-65 is required in addition for the inside handle
The inside handle is not suitable for lockable T- and L-handles
Montageinstructie:
For door gauge 40 mm in case of adapter system, with insulated door
Interne referentie:
1001-69
Barcode:
1001-000069-0000000
Soort product:
Accessoires algemeen
Materiaal:
Aluminium
Programma:
1001
Cataloguspagina:
2A-180
D-maat:
19 mm
L-maat:
23 mm
No Specifications
