Voordelen van het product:
Cost savings due to assembly and disassembly without tools within seconds. Optionally available with polyamide or steel cam. Suitable for many standard cams. Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast. Smooth operation (no inner rotation due to design) Self-sealing design for highest protection requirements (design immanent) Increased safeguarding against overwinding Standard cut out PatentedProductopmerking:
Door gauge incl. surface coating A = Assembly ① = Insert the insert part into the cut out ② = Place the click-in housing and shift it laterally ③ = Insert the cam into the click-in housing acoustic and visual verification of clicking in place of click-in housing B = Disassembly ④ = Lift locking arm of the cam ⑤ = Pull out the cam of the click-in housing ⑥ = Lift locking arm of the click-in housing ⑦ = Shift the click-in housing laterally and remove itMontageinstructie:
Assembly door stop on the right: Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing. Assembly door stop on the left: Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
Interne referentie:
1000-U873-BQ
Normen:
Beschermingsklasse IP 69K
Barcode:
1000-U00873-00000BQ
Soort product:
Bediening
Programma:
1000

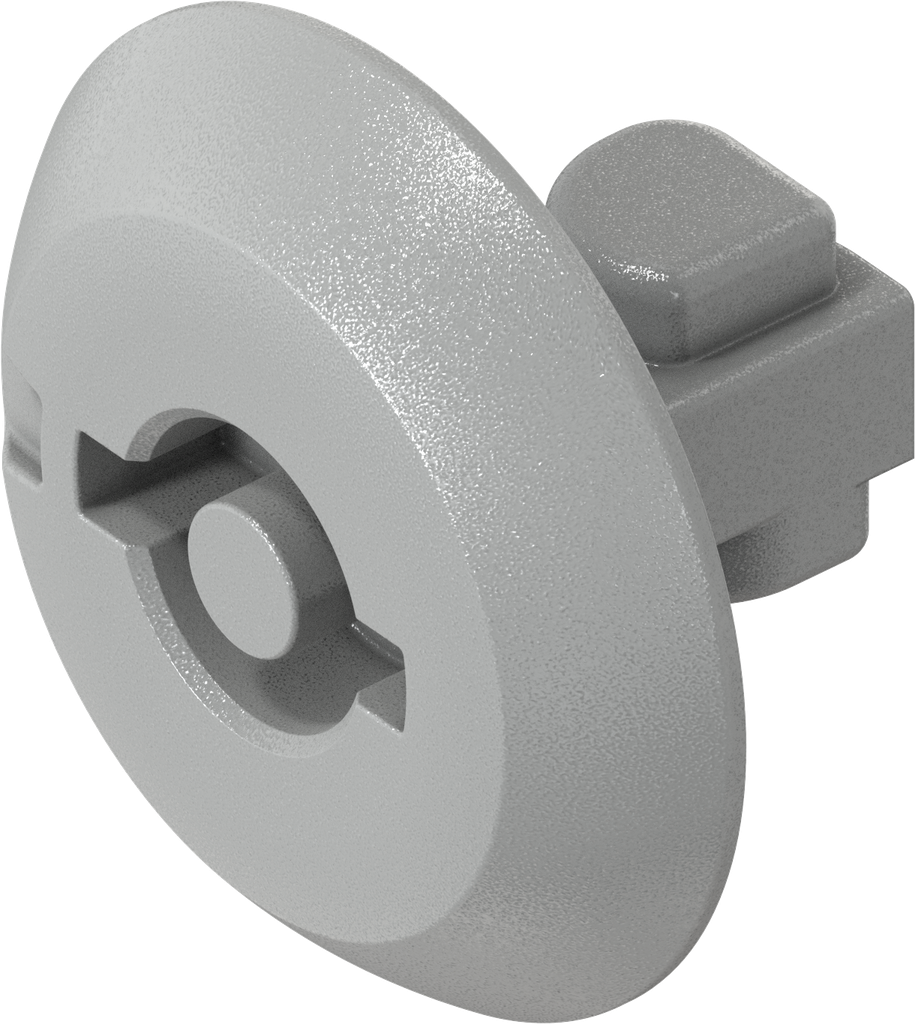

Materiaal samengesteld artikel :
polyamide GF
Afwerking samengesteld artikel:
stofgrijs
Aantal mogelijke vergrendelpunten:
1-punt
Artikel met eigendomsrecht:
Ja
Bediening voor:
Bediening voor behuizing met snelle montage
Bediening-Type:
Dubbelbaard 5
voor GH-maat:
18 mm
Sluitmiddel:
Bediening
