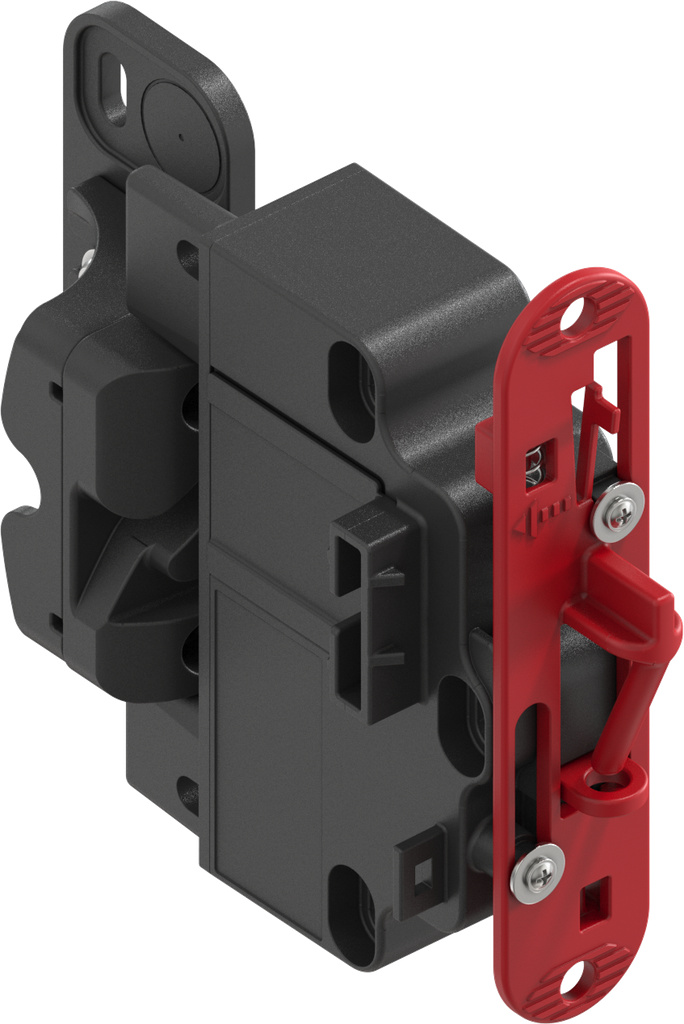

Cierre a presión electromecánico ePush Lock con apertura de emergencia para sistema de cierre centralizado , poliamida GF negro; 3000-U600-03

• invisible from the outside
• open by pushing
• close by pushing
• open collector output for monitoring of lock status and door status
• emergency opening possible via bowden cable in case of power failure
• mirror-image version of catch, housing and turn for emegency opening available on request

The electromechanical push lock ePush Lock is used as an invisible lock from the outside in different applications.

The following versions are available:

• Lock with emergency opening for central locking
• Lock with emergency opening for switch / button
• Lock with emergency opening for central locking and turn for emergency opening
• Lock with emergency opening for switch / button and turn for emergency opening
• Lock for manual operation

  Supply range: 9 ... 32 VDC, 200 mA, stand-by 3 mA.
  Output signals: Open-Collector (max 26 V, 30 mA)
  (connector type: Micro MATE-N-LOK 1445022-8)

A. switch / button, central locking + permanent current (equal voltage level)
A1. locking
A2. unlocking
A3. ᅳ
A4. V +
A5. V -
A6. ᅳ
A7. lock status
A8. door status
B. central locking
A1. locking, channel 1
A2. unlocking, channel 1
A3. ᅳ
A4. ᅳ
A5. V -
A6. ᅳ
A7. lock status
A8. door status

11. pushing
12. release
13. spacer
14. ejector
15. cover
20. dimension X and Y by choice of customer;
X = 13 - 32,25 ; Y = 4,75 - 40
