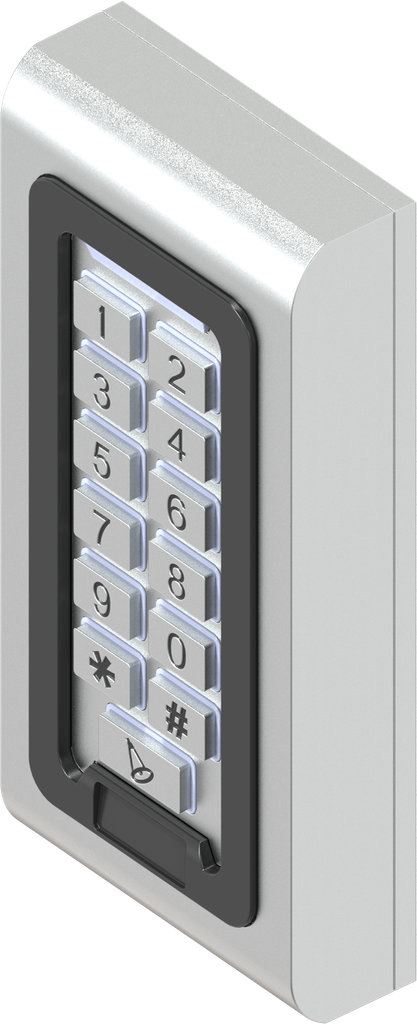

Lector de tarjeta con teclado, zamak electropulido; 3000-U45-05

Rack management systems

• The card reader is suitable for use in external access control systems in indoor and outdoor areas
• It reads RFID cards in Mifare Classic format and makes the card data available via a Wiegand 26-bit interface.
• The card reader can be connected to the Access Unit 3000-U47-02 as an external reading unit. An adapter is required for the electrical connection, which is not included in the scope of delivery
• The integrated keyboard cannot be used in this operating mode

Stand-Alone systems

• The card reader with keypad can be used in stand-alone applications in indoor and outdoor areas. It reads cards in Mifare Classic format.
• Authentication can be done by card, by PIN or by card and pin (2 factor authentication)
• Up to 2,000 users can be stored locally
• A potential-free relay contact is available for controlling closures

Power supply: 12 ... 24 VDC, <60 mA, standby < 30 mA
Output: Rack Management Systems - Wiegand 26
Output: Stand-alone systems - Relay: max. 30 V DC, max. 1 A
Protection class: IP 68
Operating temperature: -45 ... +60° C
Humidity: 10 ... 90 % r.H. (non-condensing)
Dimensions (L x W x H): 120 x 58 x 21.5 mm
Scope of delivery: connection cable 250 mm with open wire ends
