eCam Safety, cierre de lengüeta electromecánico con retroalimentacion, poliamida GF negro
Eyector, poliamida GF negro
Nota del producto:

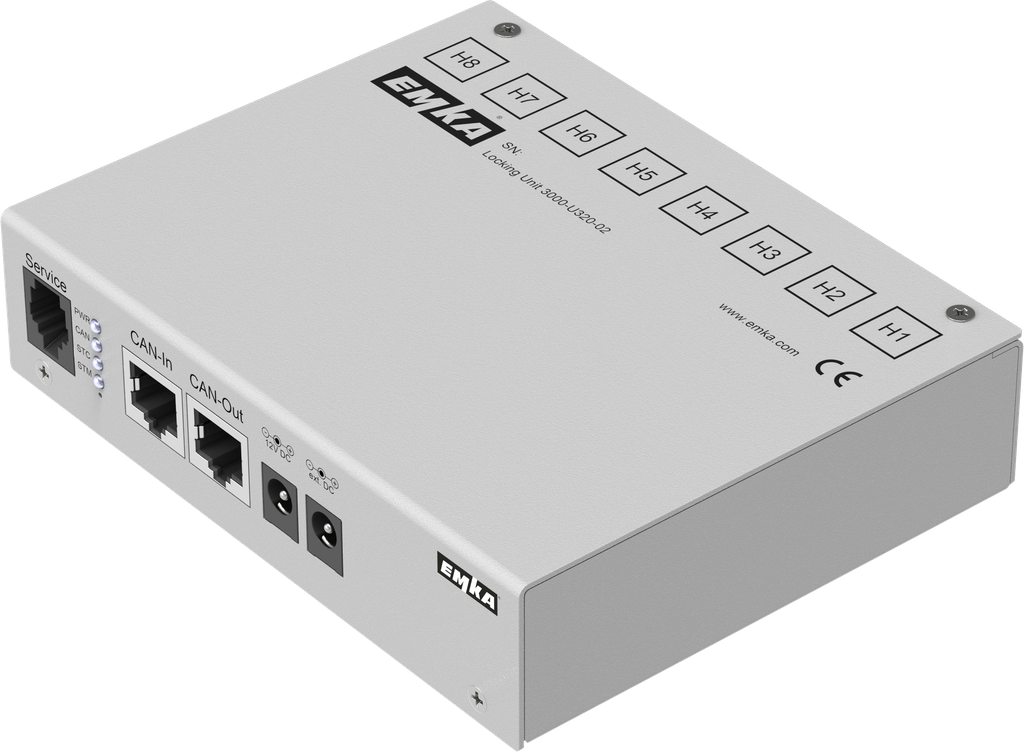

The Locking Unit 3000-U320-02 is part of the ELM system. It offers 8 independent ports for controlling electromechanical handles or single-point locks. Alternatively, a potential-free door contact can be connected to each port to monitor the door status (OPEN/CLOSED) .& nbsp;
Power supply: 12 V DC, 140 mA + latch output(s)
Latch output: max. 12 V / 1000 mA or max. 24 V / 500 mA;
Total current: 2000 mA
CAN LED: flashes when active, otherwise ON
STC LED: Normally OFF, flashes when the module status changes
Box dimensions: 135 x 33 x 107 mm (W x H x D)
Referencia interna:
3000-U320-02
Código de barras:
3000-u00320-0000002
Tipo de producto:
ELM - Locking Unit
Programa:
3000
Sistema Stand-Alone o interconectado :
solución interconectada
Solución interconectada:
sistema de supervisión y control de acceso
