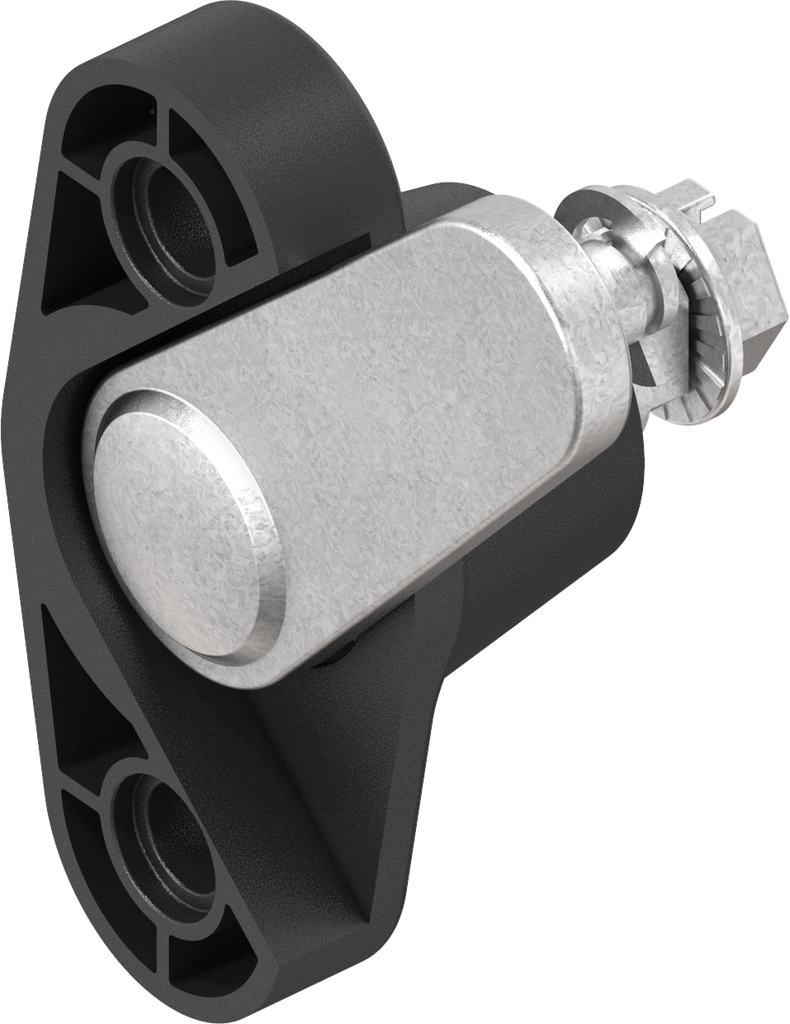

Punto de bloqueo con función de compresion para bloqueo multipunto, versión izquierda , poliamida negro y zamak; 1121-U204
para manetas giratorias, cuartos de vuelta y sistemas de climatización
Ventajas del producto:
- Compression function
- Locking system and cut out independent of compression latch system
- Corner guide can be used for additional locks in transverse installation
- High closing comfort
- Patented
Nota del producto:
Locking point for compression latch system
Left version for (A) swinghandle with GH = 18 and (C) HVACR systems with modular locking system
Right version for (B) quarter turn with GH = 18 with classic opening direction from 3 to 12 o'clock
For systems with corner guide, the connecting rods must be adapted to the respective door height.
Nota sobre el montaje:
Locking point for weld stud M6x16 or blind rivet
Ejemplo de solicitud/cálculo:
Compression value calculation example 1:
Locking point 1121-U203 and - U204 = 4 mm
Cam e.g. 1000-17 = 3 mm
Ramp 1000-U858 = 4 mm
Total compression value = 11 mm
Compression value calculation example 2:
Locking point 1121-U203 and -U204 = 4 mm
Roller cam big 1000-U897 = 10 mm
Ramp 1000-U858 = 4mm
Total compression value = 18 mm
