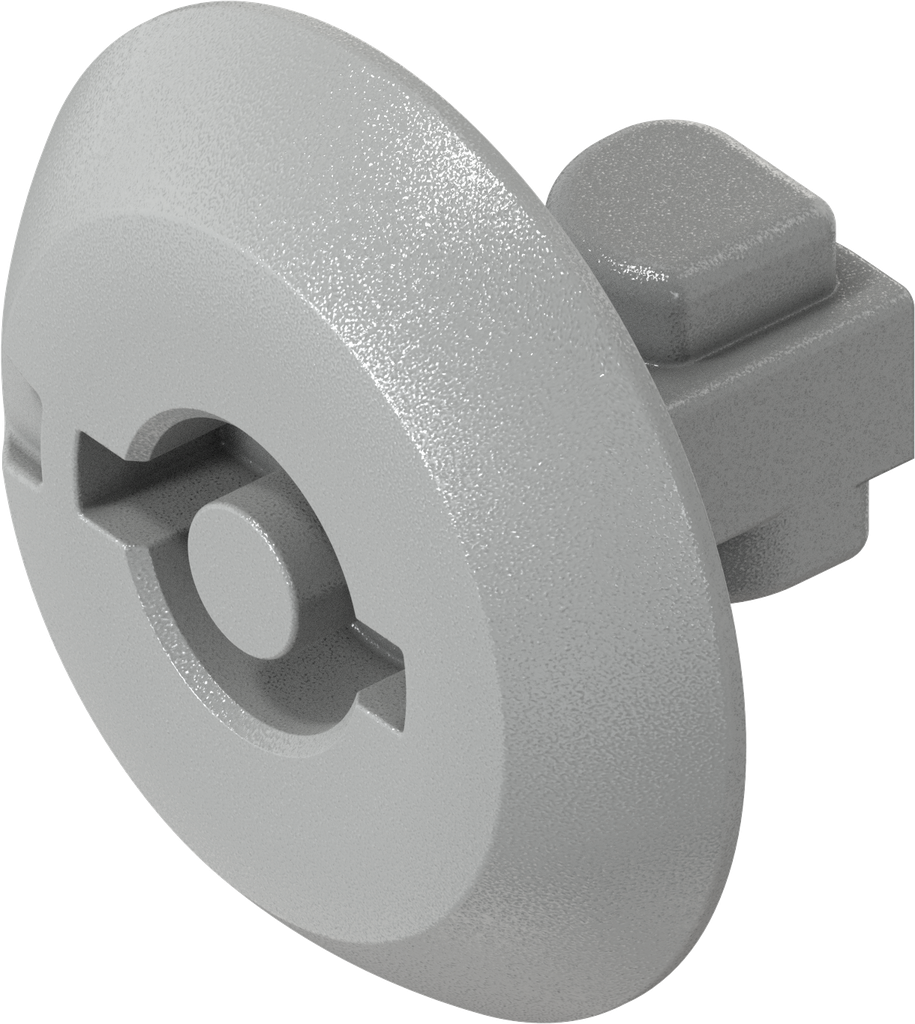

Unidad de inserto doble barra 5 para montaje sin necesidad de herramientas, poliamida GF gris polvo; 1000-U873-BQ
Medida GH = 18 mm
Ventajas del producto:
Cost savings due to assembly and disassembly without tools within seconds. Optionally available with polyamide or steel cam. Suitable for many standard cams. Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast. Smooth operation (no inner rotation due to design) Self-sealing design for highest protection requirements (design immanent) Increased safeguarding against overwinding Standard cut out PatentedNota del producto:
Door gauge incl. surface coating A = Assembly ① = Insert the insert part into the cut out ② = Place the click-in housing and shift it laterally ③ = Insert the cam into the click-in housing acoustic and visual verification of clicking in place of click-in housing B = Disassembly ④ = Lift locking arm of the cam ⑤ = Pull out the cam of the click-in housing ⑥ = Lift locking arm of the click-in housing ⑦ = Shift the click-in housing laterally and remove itNota sobre el montaje:
Assembly door stop on the right: Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing. Assembly door stop on the left: Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
Referencia interna:
1000-U873-BQ
Normas:
clase de protección IP 69K
Código de barras:
1000-U00873-00000BQ
Tipo de producto:
inserto
Programa:
1000
Material del módulo :
poliamida GF
Acabado del módulo:
gris polvo
Número de posibles puntos de cierre:
1 punto
Artículo protegido por los derechos de propiedad intelectual:
Sí
Inserto para:
Insert for housing with quick mounting
Tipo de inserto:
doble barra 5
Para medida de carrera completa:
18 mm
Cierre:
inserto
