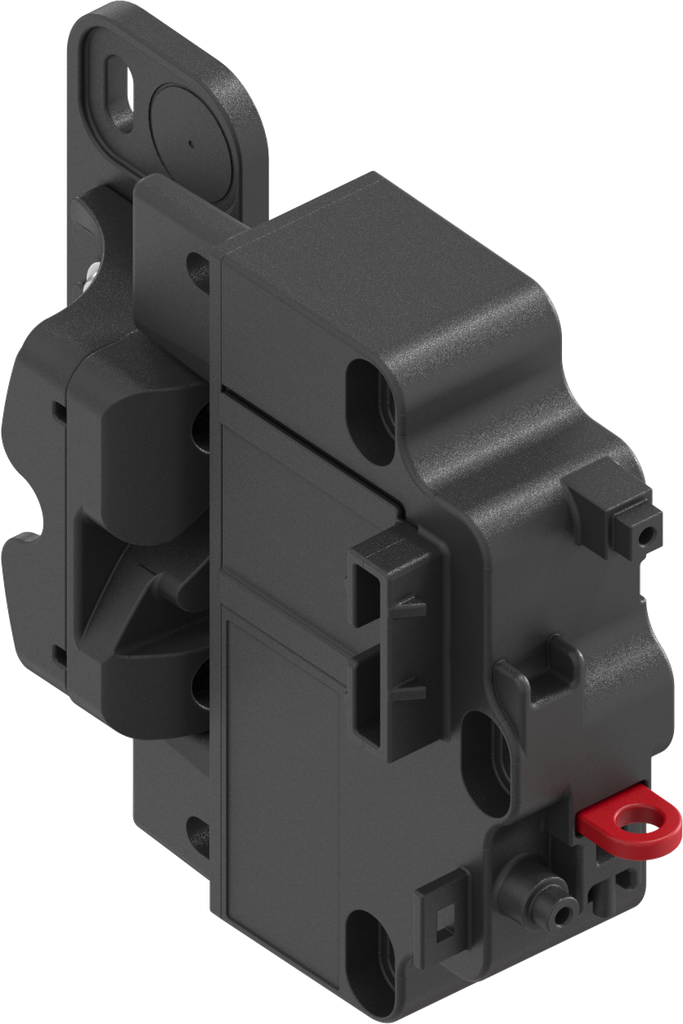

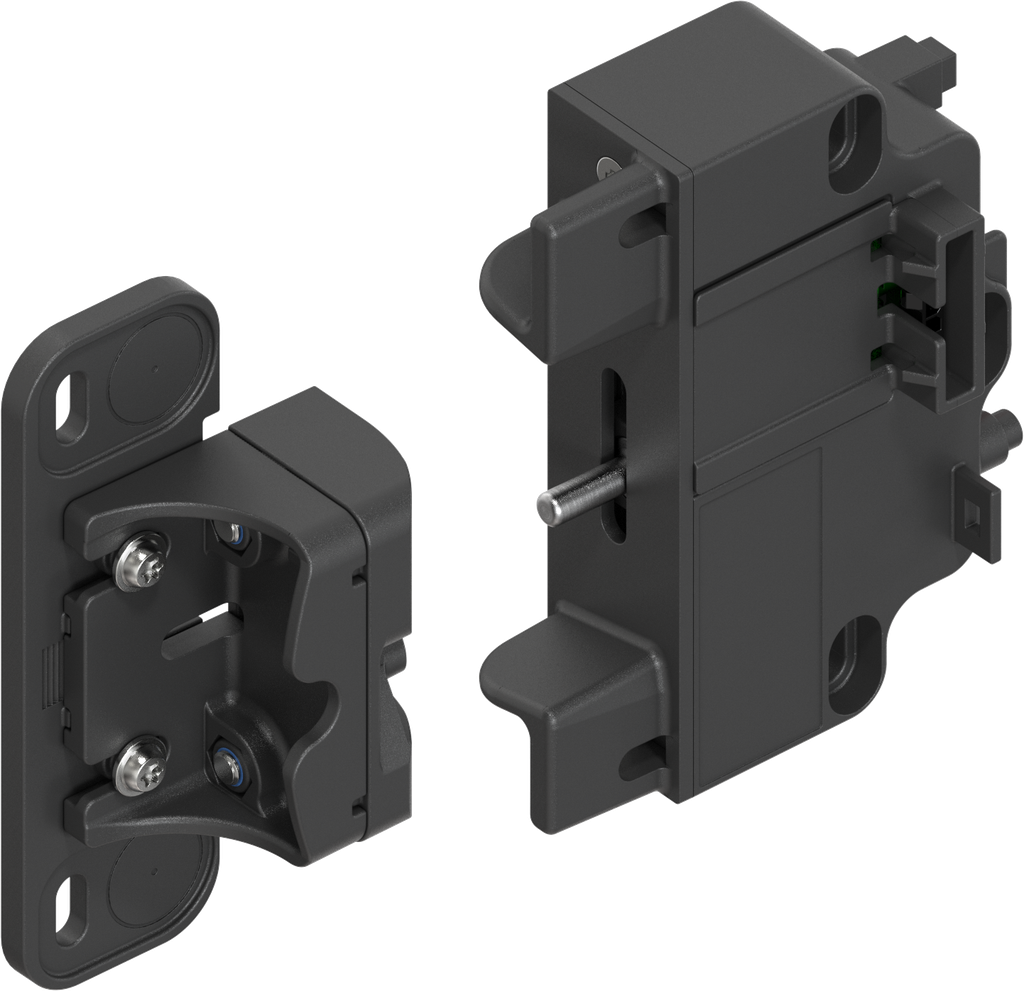

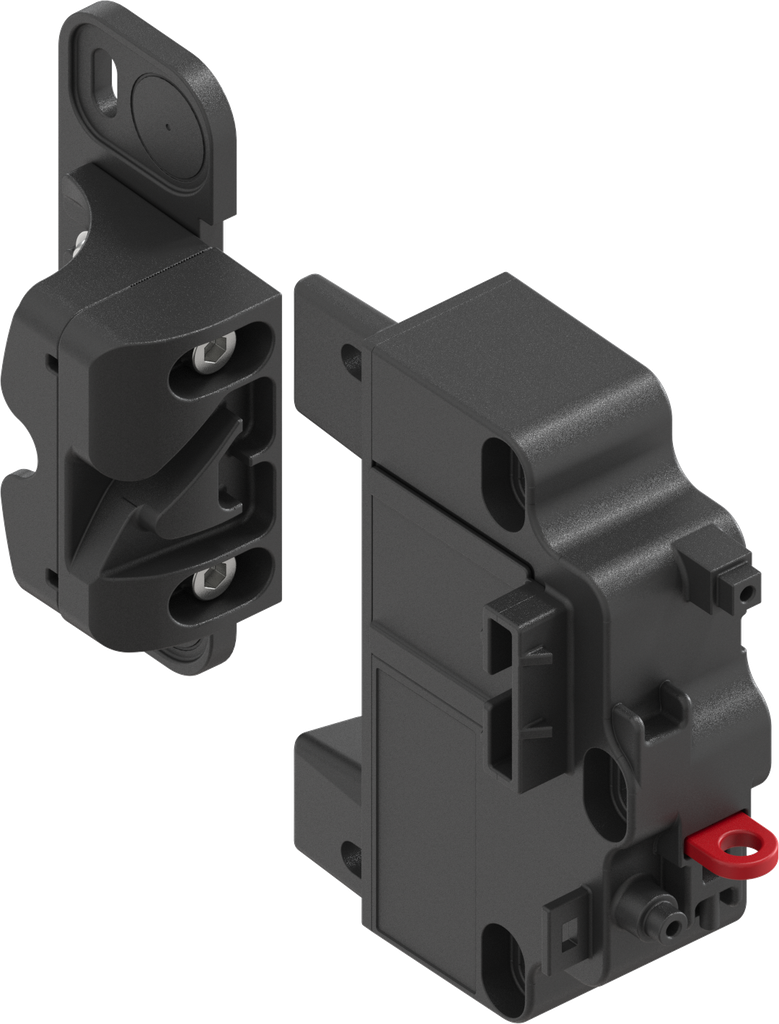

ePush Lock Elektromechanischer Druckverschluss mit Notöffnung für Zentralverriegelung, Polyamid GF schwarz; 3000-U600-01

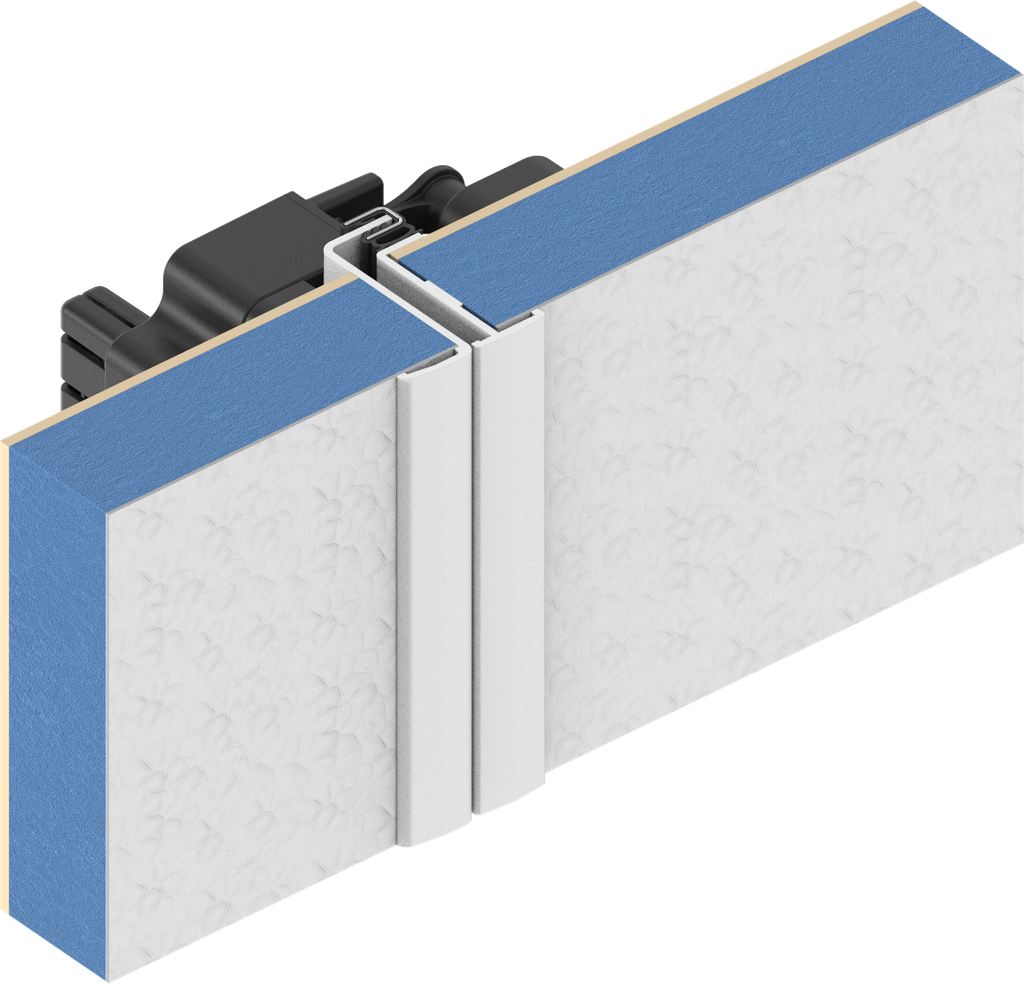

• Lock invisible from the outside

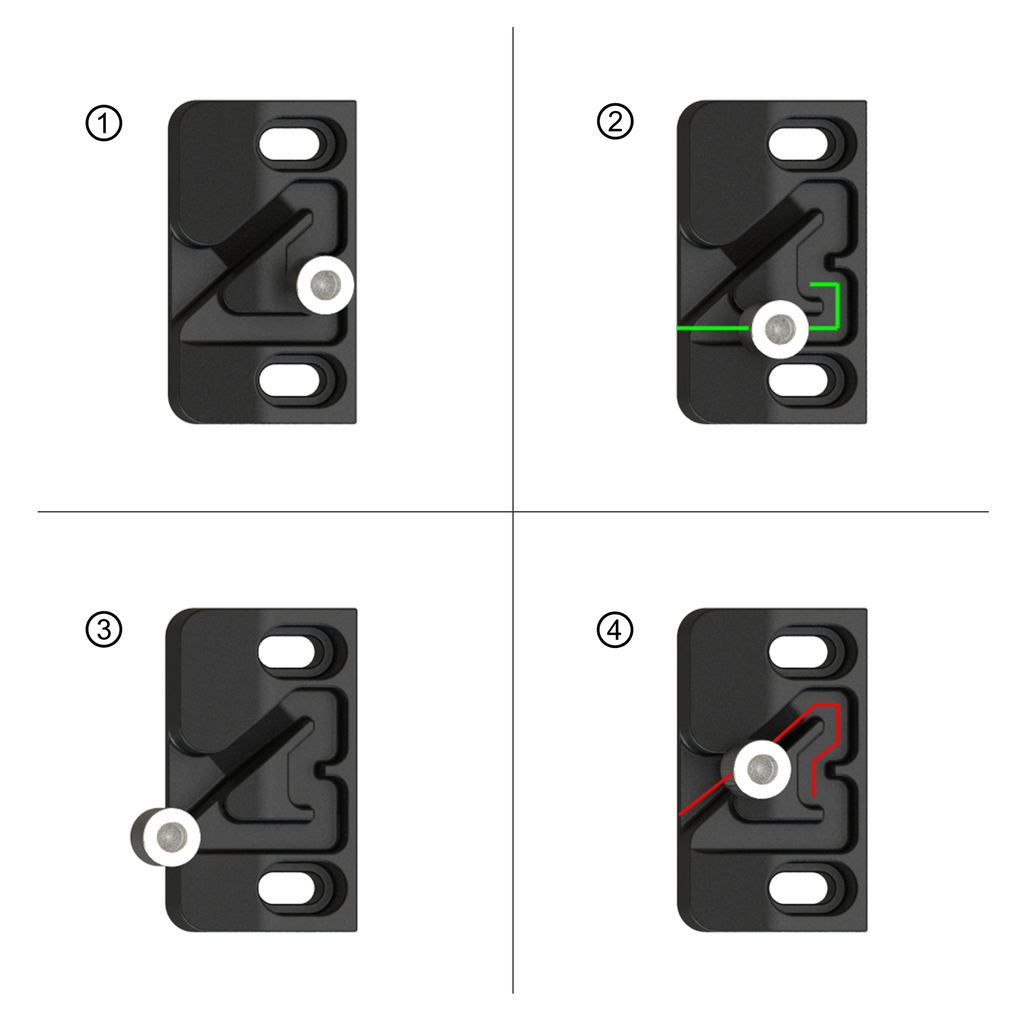

• Press to open
• Closing by pressing
• Open collector outputs for remote monitoring of lock and door status
• Emergency opening in case of power failure possible via Bowden cable
• Mirrored version of lock holder, lock housing and turn for emergency release available on request

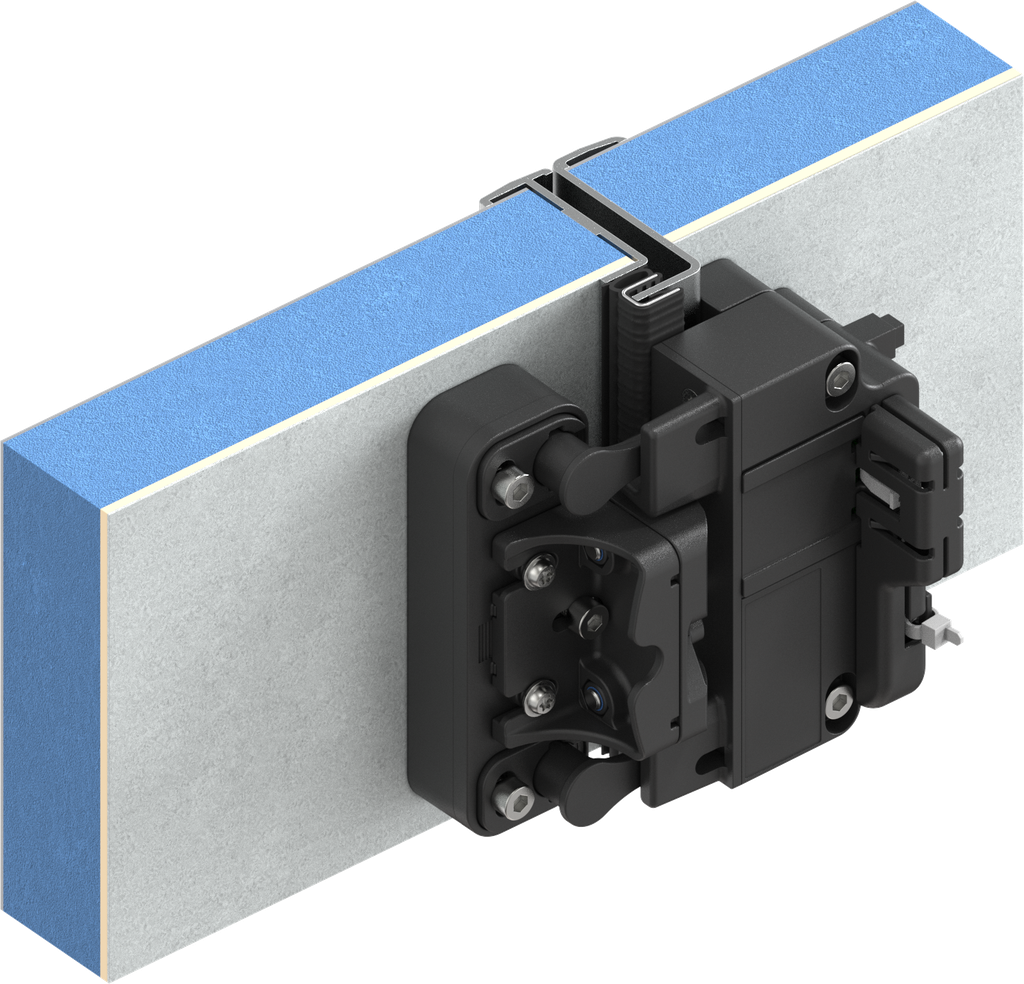

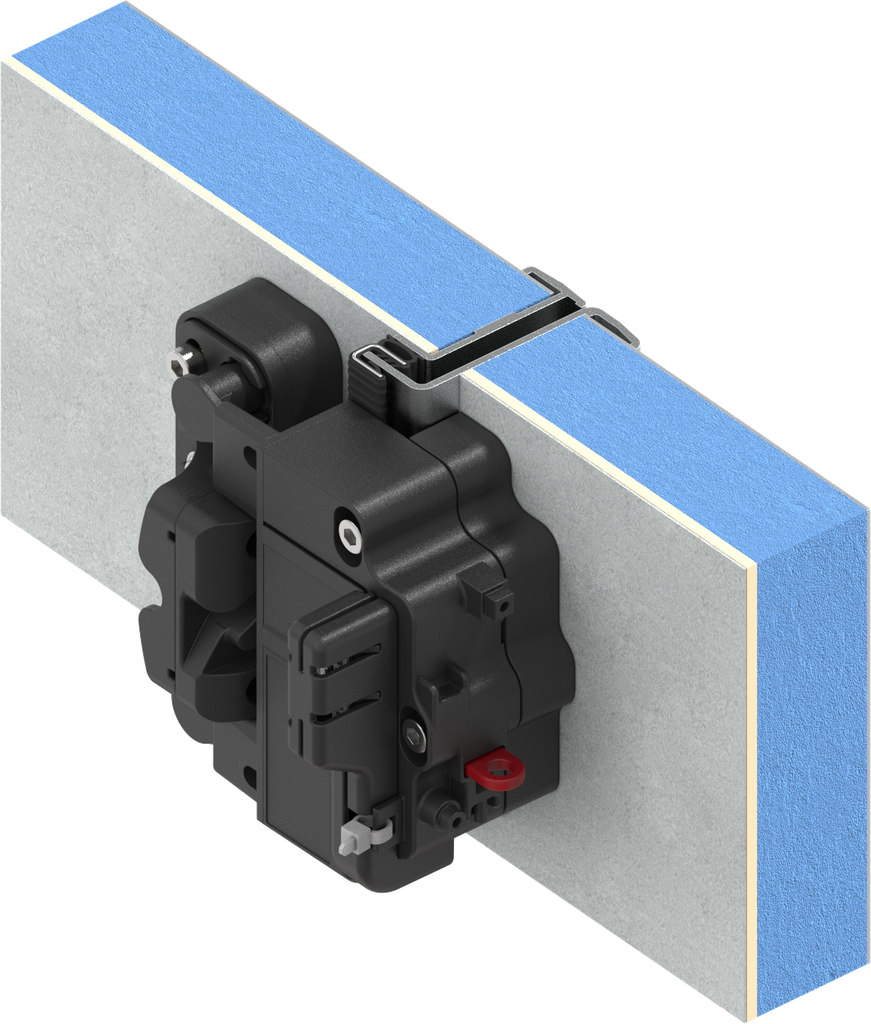

The electromechanical push lock ePush Lock is used as an invisible lock from the outside in different applications.
The following versions are available:

• Lock with emergency opening for central locking
• Lock with emergency opening for switch / button
• Lock with emergency opening for central locking and turn for emergency opening
• Lock with emergency opening for switch / button and turn for emergency opening
• Lock for manual operation

  Supply range: 9 ... 32 VDC, 200 mA, stand-by 3 mA.
  Output signals: Open-Collector (max 26 V, 30 mA)

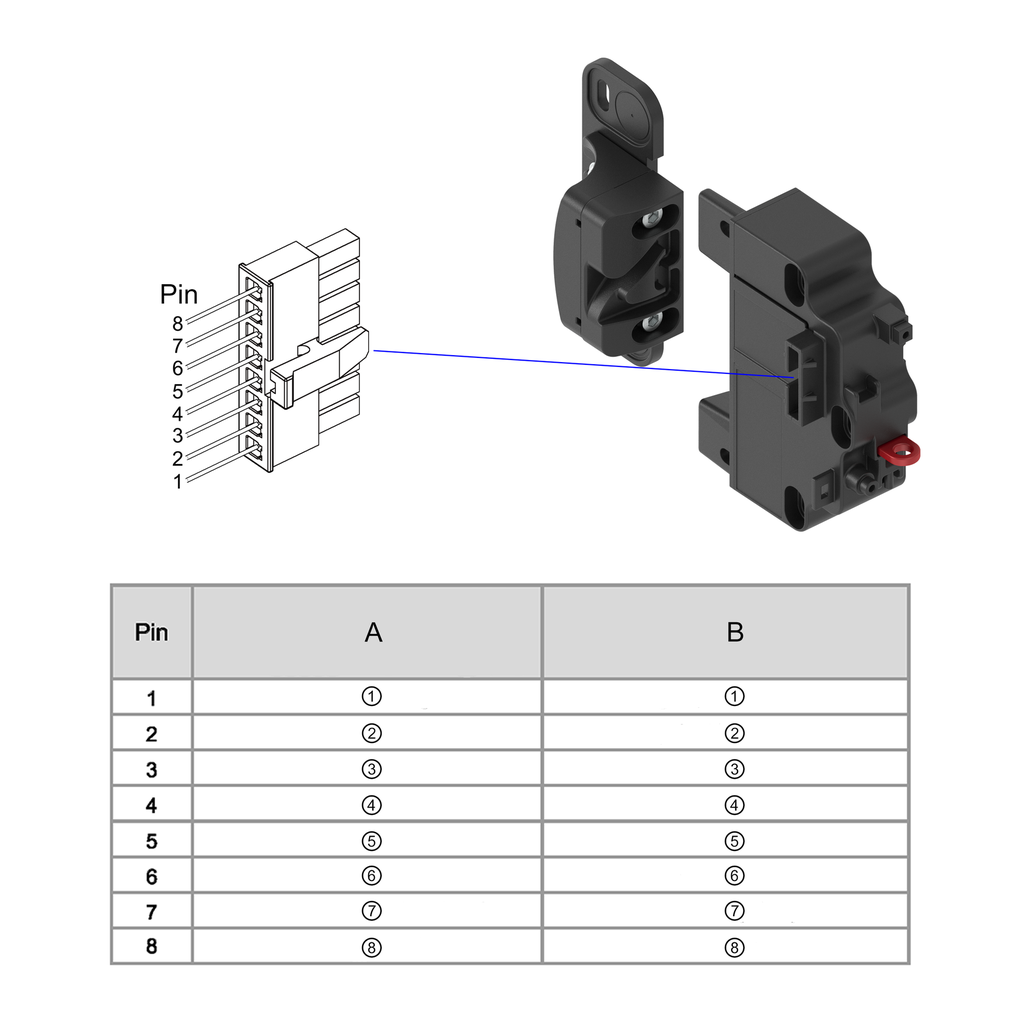

  (connector type: Micro MATE-N-LOK 1445022-8)

A. Switch / Button, central locking + permanent current (equal voltage level)
A1. Locking
A2. Unlocking
A3. ᅳ
A4. V +
A5. V -
A6. ᅳ
A7. Lock status
A8. Door status
Central locking
A1. Locking, channel 1
A2. Unlocking, channel 1
A3. ᅳ
A4. ᅳ
A5. V -
A6. ᅳ
A7. Lock status
A8. Door status

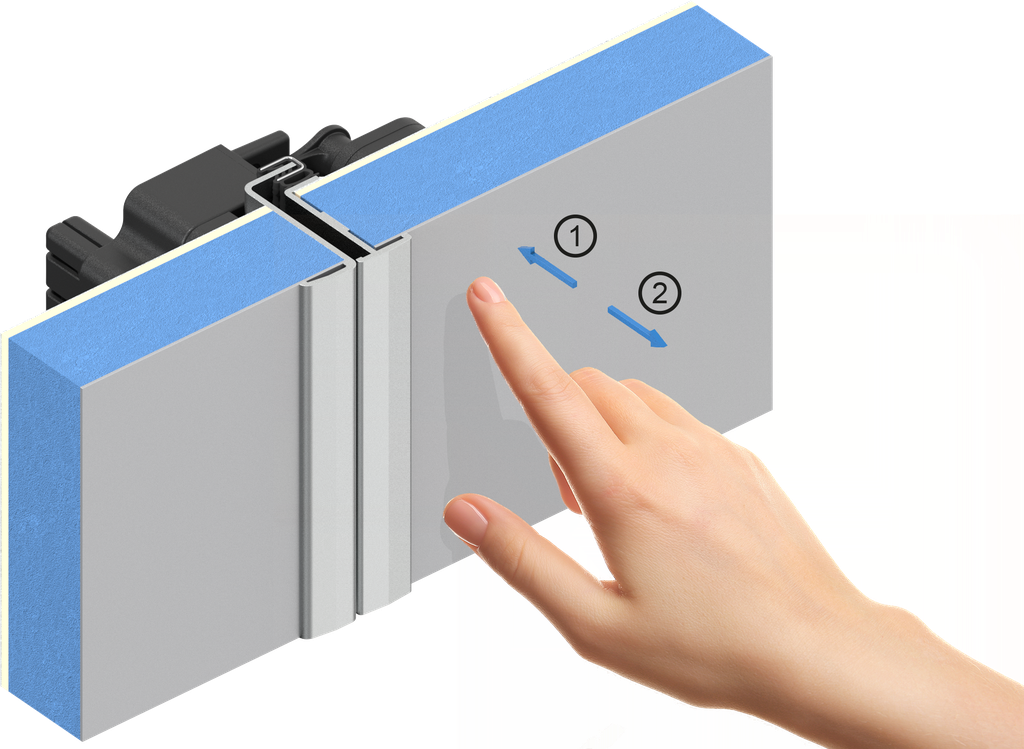

11. Press on
12. Release

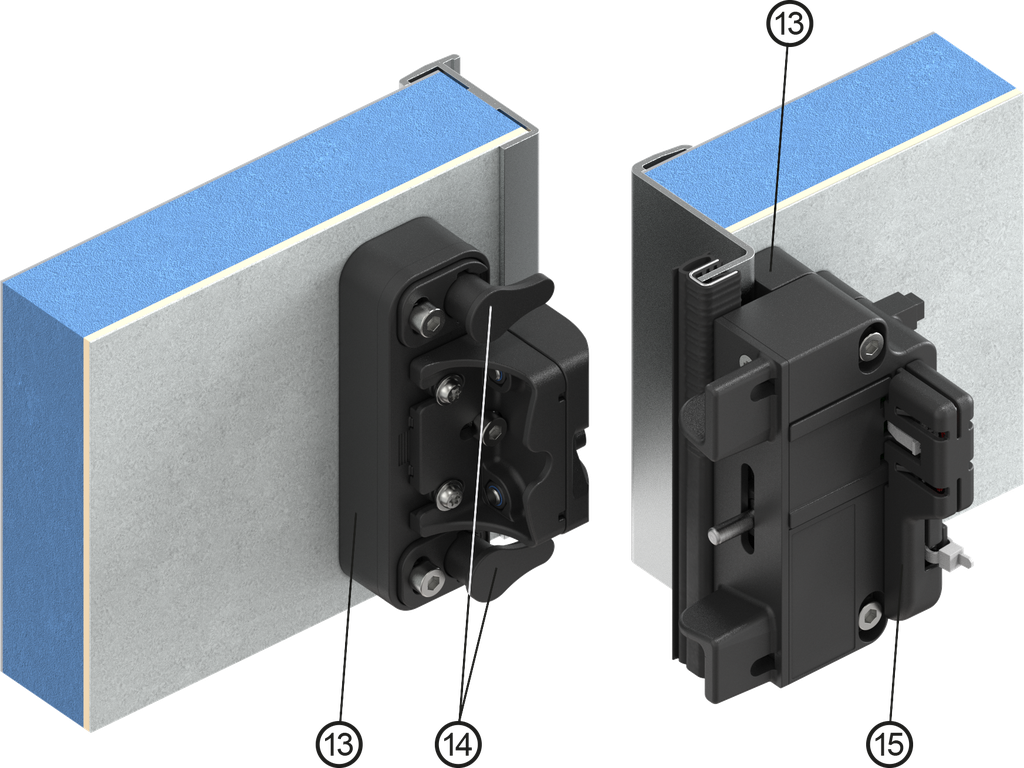

13. Spacer
14. Ejector
15. Cover

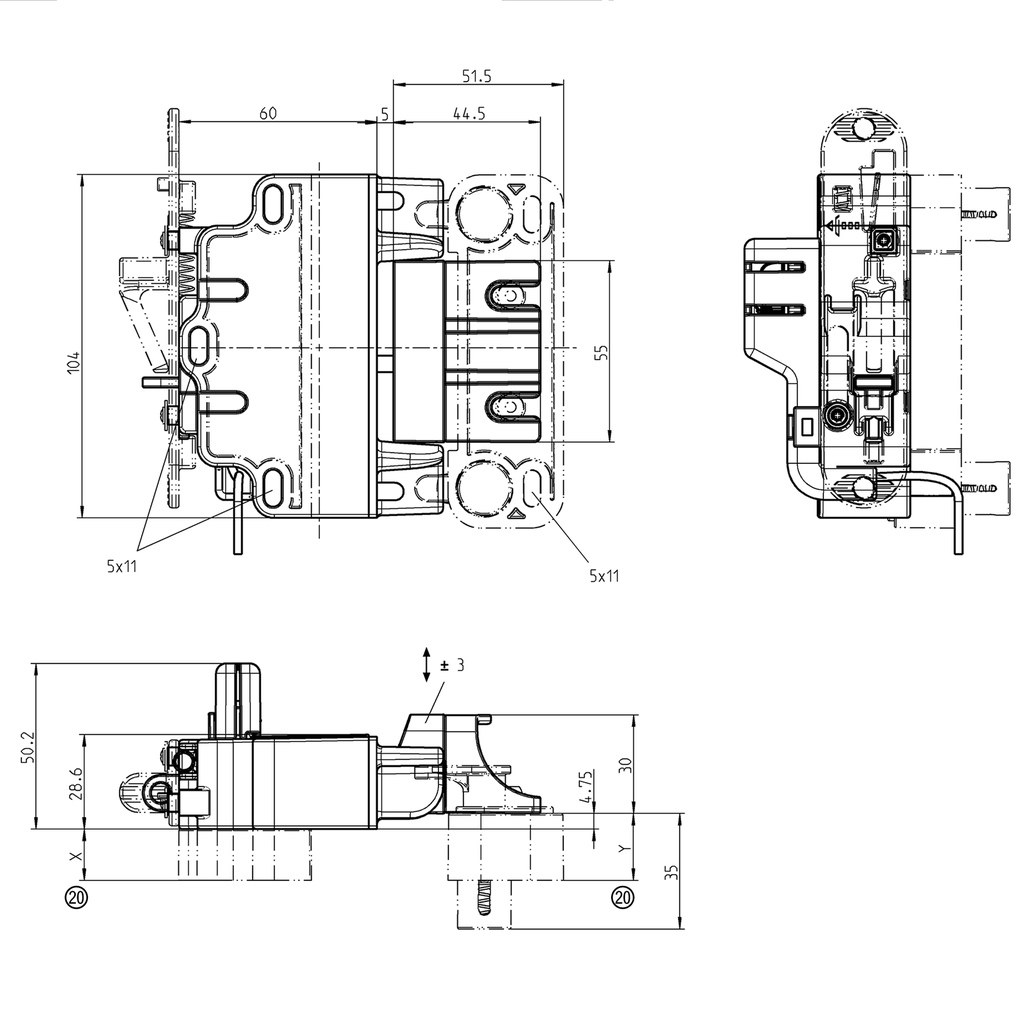

20. Dimension X and Y by choice of customer; X = 13 - 32.25; Y = 4.75 - 40
