Einpunktverriegelung mit Notöffnung, Battery backup, Polyamid GF schwarz
Einpunktverriegelung mit Notöffnung, Battery backup, Polyamid GF schwarz
eCam Elektromechanischer Zungenverschluss Safety mit Rückmeldung, Polyamid GF schwarz
eCam Elektromechanischer Zungenverschluss Safety mit Rückmeldung, Polyamid GF schwarz

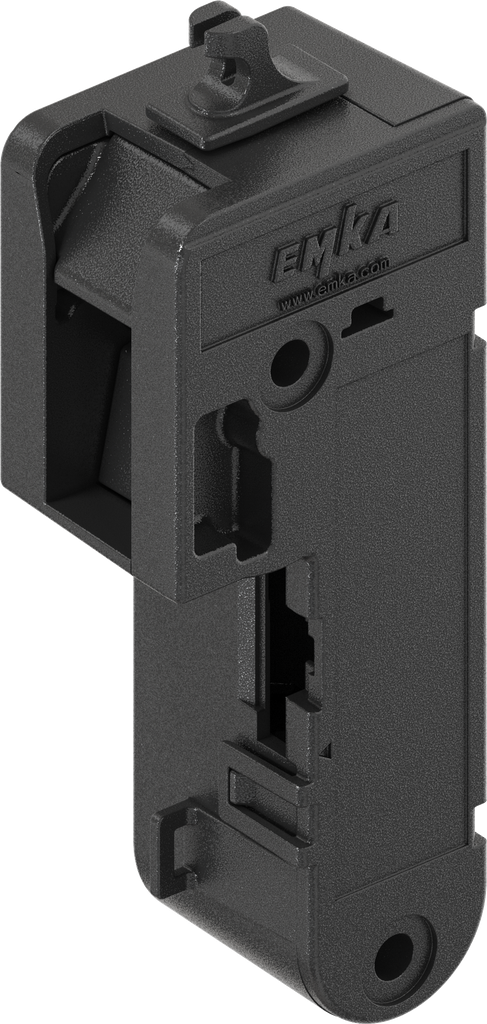

eCam Elektromechanischer Zungenverschluss Basic, Polyamid GF schwarz; 3000-U304-01

https://www.emka.com/products/3000-u304-01 https://www.emka.com/web/image/product.template/235850/image_1920?unique=6997481

Zungenverschluss ohne Rückmeldung


    Diese Kombination existiert nicht.



    Produkthinweis:

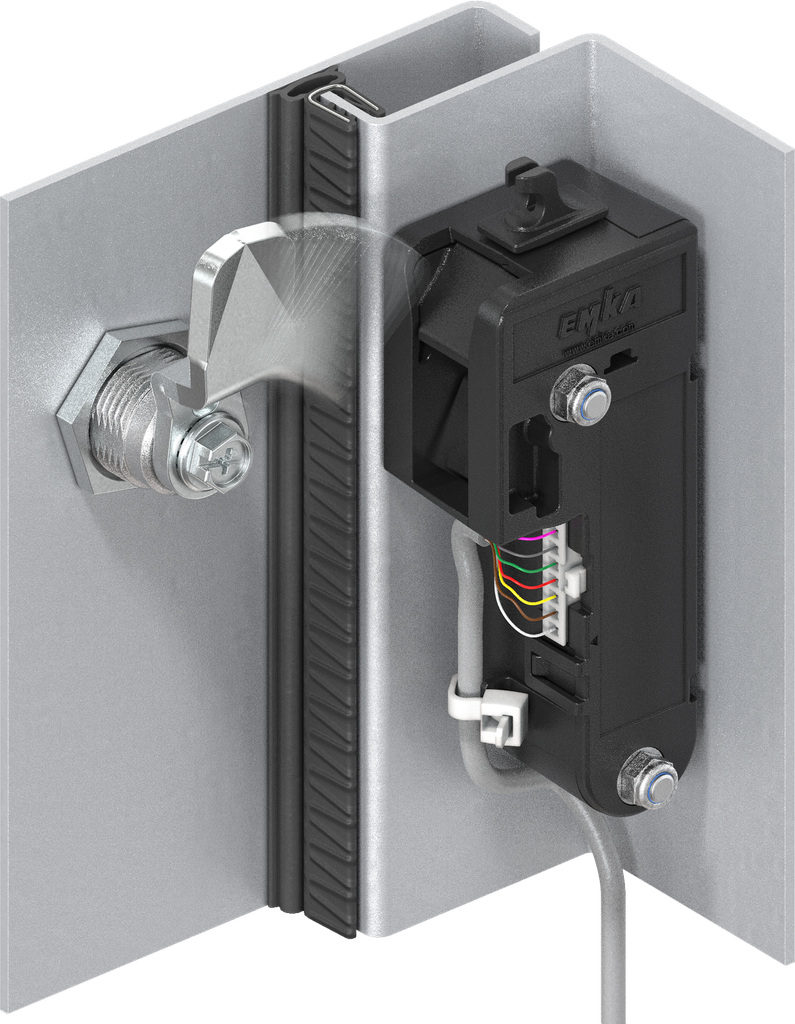

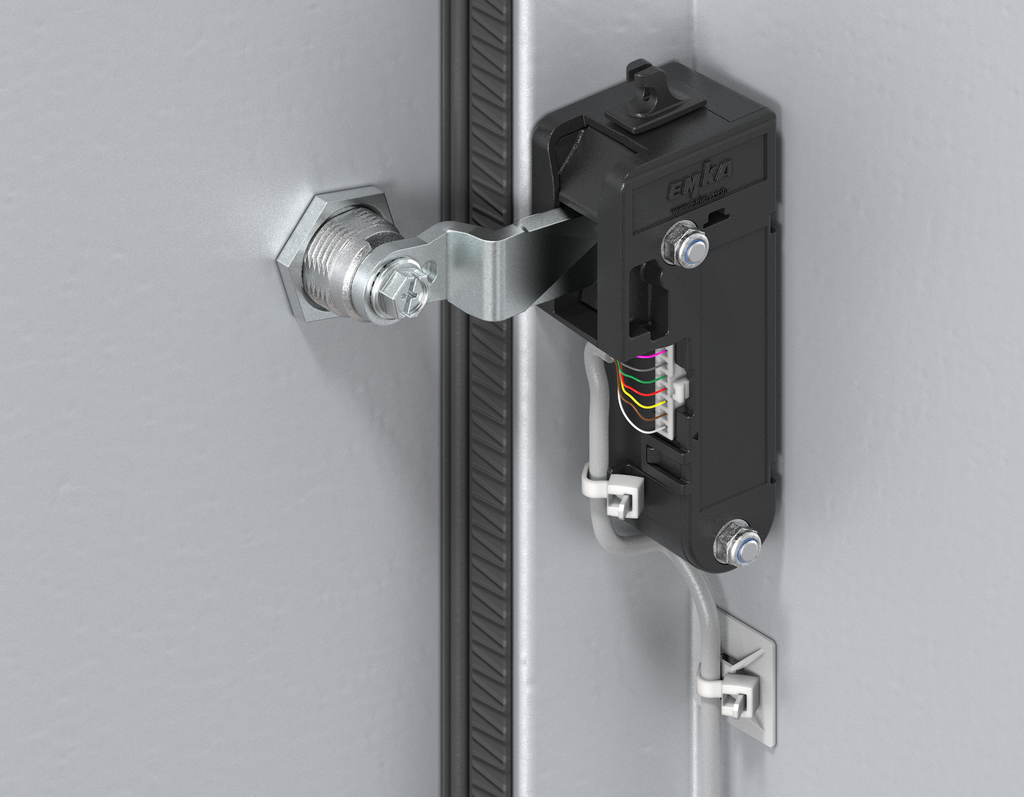

    The electromechanical cam lock eCam is used in different application areas as locking system which is invisible from die outside.
    The following versions are available:

    • Basic = Cam lock without status feedback
    • Basic Plus = Cam lock with status feedback
      Open collector output A1 indicates if the cam is engaged in the catch
    • Energy store = Cam lock with status feedback and automatic unlock in case of power failure
      Open collector output A1 indicates if the cam is engaged in the catch
    • Broad supply voltage range from 9 ... 32 V
    • Open collector output for remote monitoring of the lock status
    • Emergency opening in case of power failure possible via Bowden cable

      Power supply: 9 ... 32 VDC, max. 100 mA, stand-by 3 mA
      Output signals: open collector (max. 30 V, 50 mA)

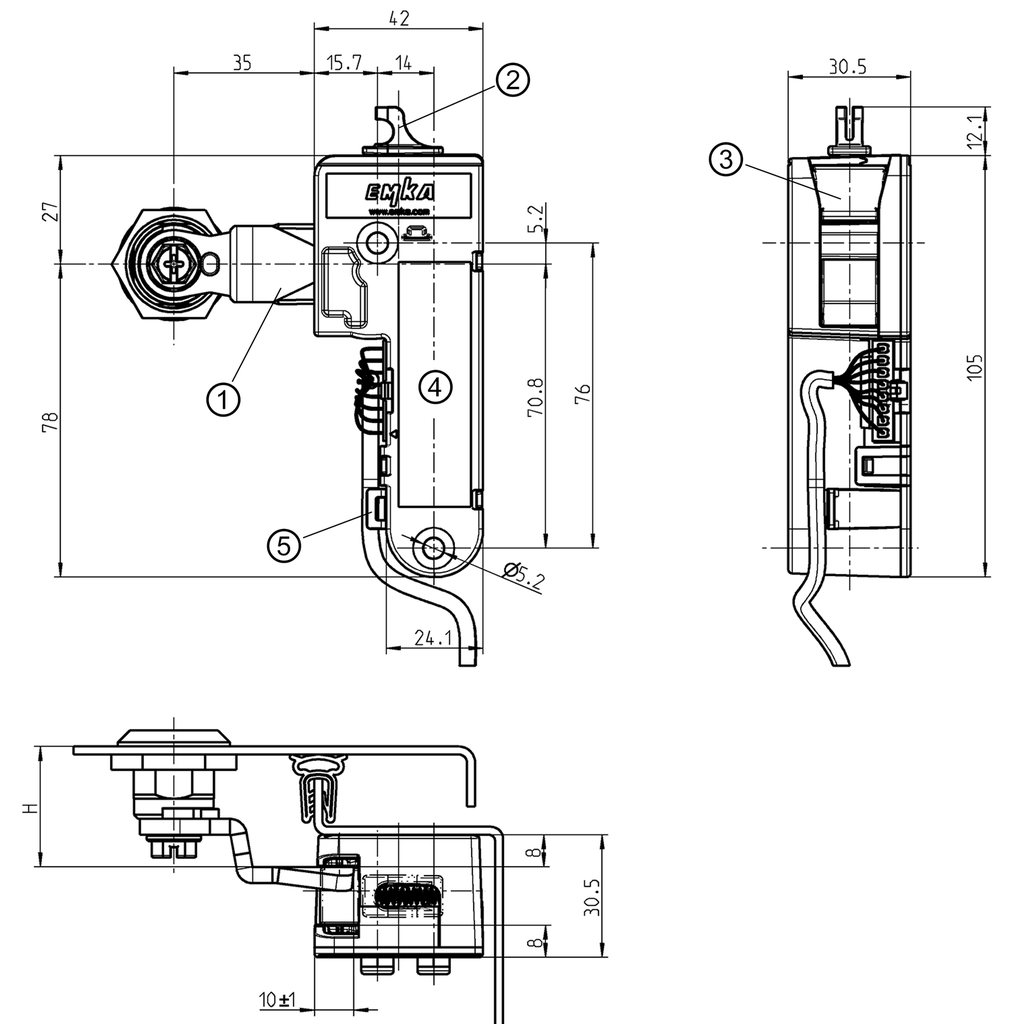

    1. Cams L = 45
    2. Bowden cable holder
    3. Catch
    4. Surface for adhesive tape
    5. Loop for cable tie

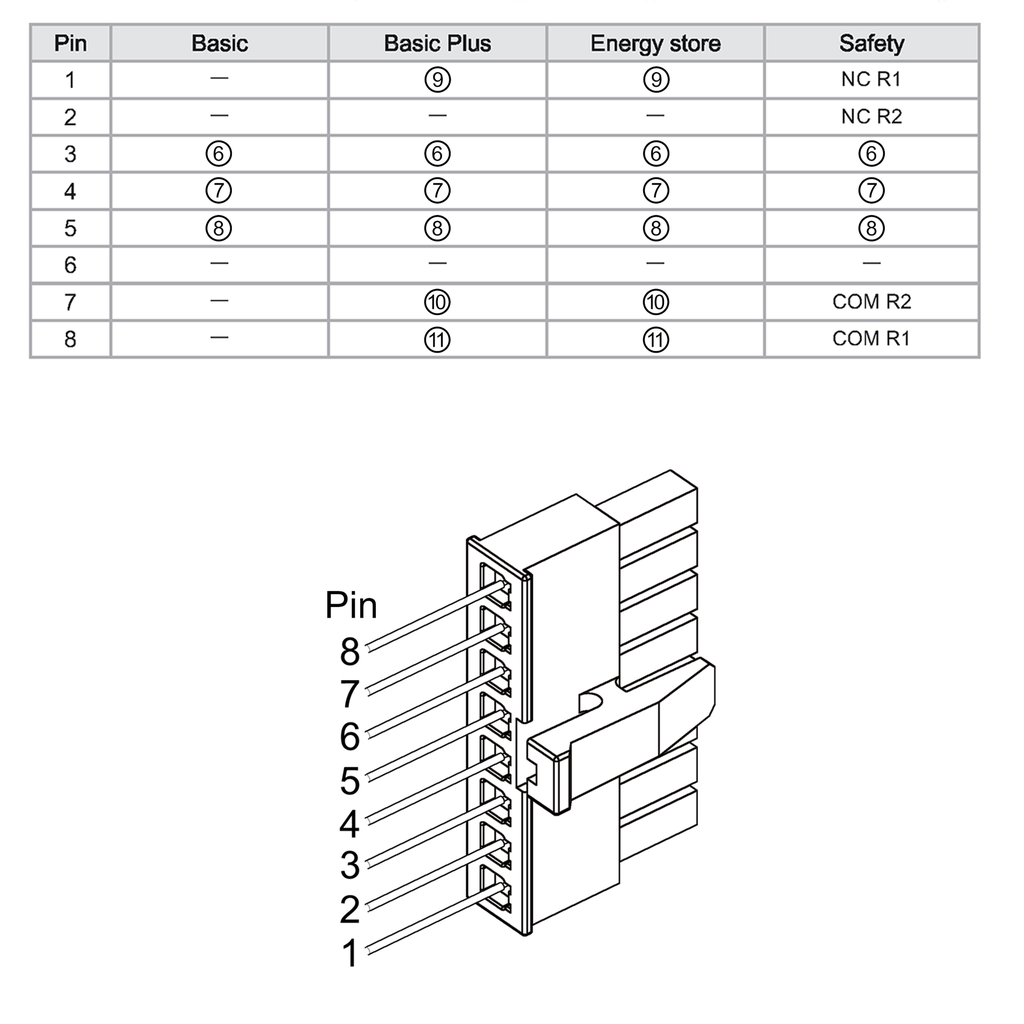

    6. Control input
    7. V -
    8. V +
    9. Output A1
    10. Door contact A1
    11. Door contact A2
    Interne Referenz: 3000-U304-01
    Barcode: 3000-U00304-0000001
    Produktart: Elektromechnischer Zungenverschluss eCam
    Programm: 3000
    Material der Baugruppe : Polyamid GF
    Oberfläche der Baugruppe: schwarz
