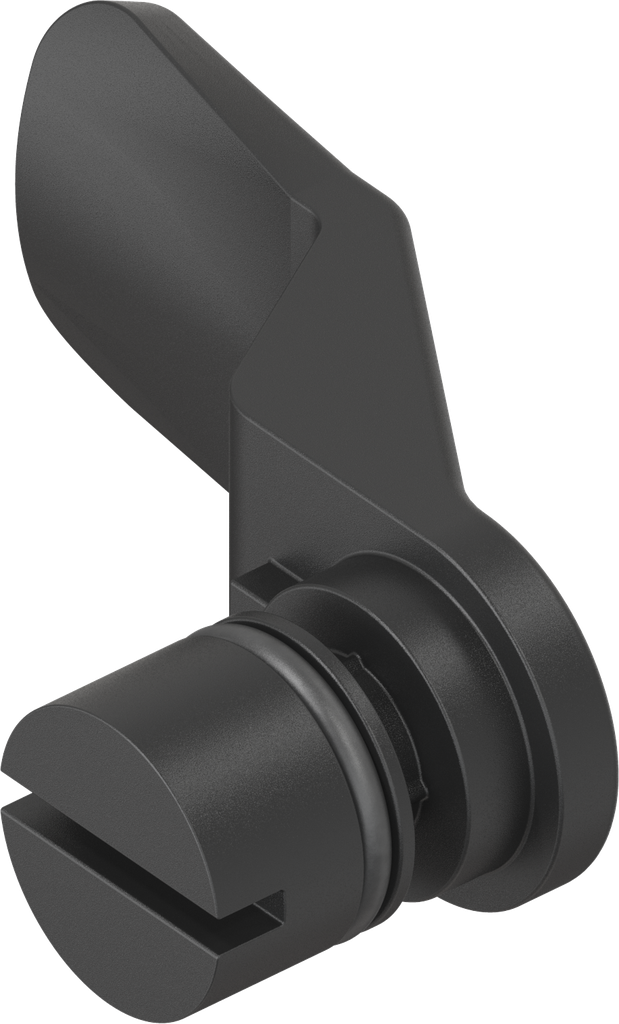

Insert with cam, slot 2 x 4, with O-ring, Polyamide GF black; 1500-B177-H28
This product has no valid combination.
Product information:
Further insert cams with other inserts or other H- and L-dimensions on request.
Internal Reference:
1500-B177-H28
Standards:
Protection class IP 65
Barcode:
1500-b00177-0000h28
Product Type:
Insert cam
Material:
Polyamide GF
Program:
1500
Surface:
black
Number of Possible Locking Points:
1 point
Type of actuation:
Slot 2 x 4
For GH measure:
15 mm
Compression Value :
3 mm
Offset:
positive
offset of cam:
13 mm
Dimension L:
45 mm
O-ring position:
Slot
Locking set:
Insert
