zama alluminio brillante verniciato a polvere e poliammide GF nero; 3000-U961-42
for cam
Indicazioni prodotto:
- When using Agent E BLE, no additional hardware is required for operation
- Opening a handle does not necessarily require an Internet connection
- Various EMKA ELM products can be integrated via the Access Unit BLE and can be operated and administered in the same way

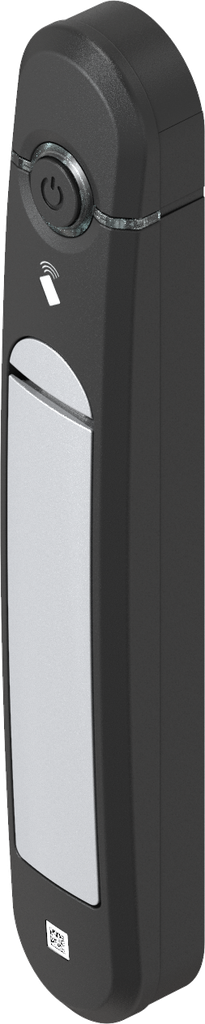

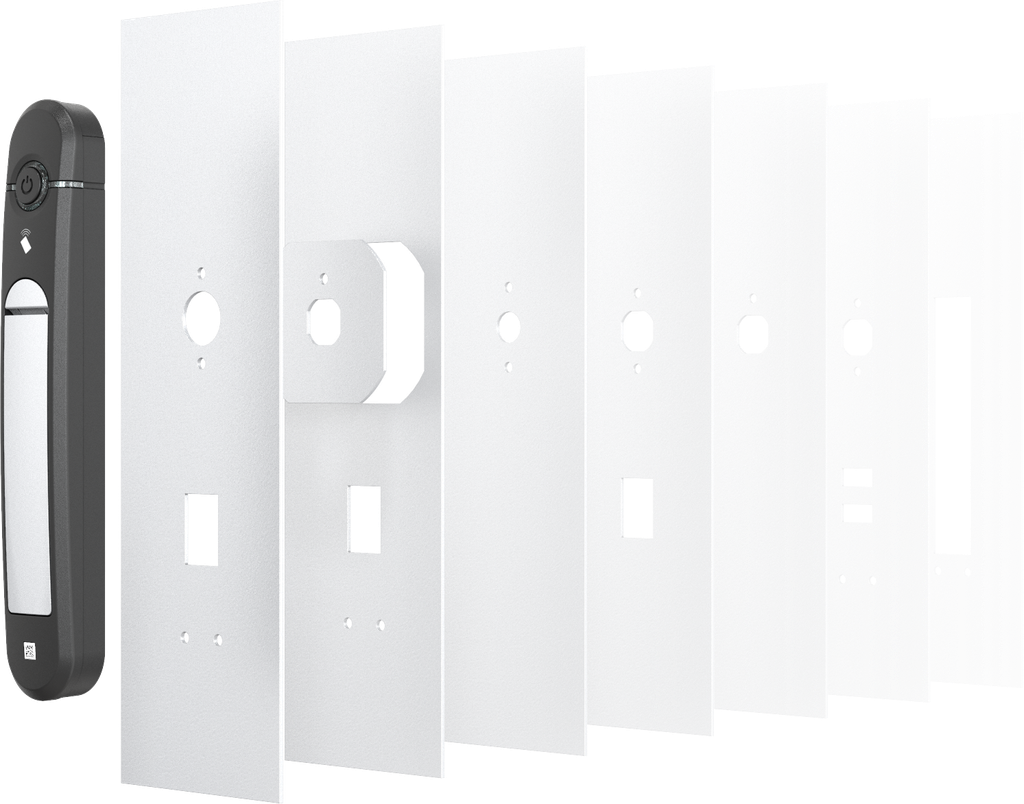

- Battery-operated swinghandle in the design of the Agent E series, suitable for retrofitting on a wide range of cabinet types

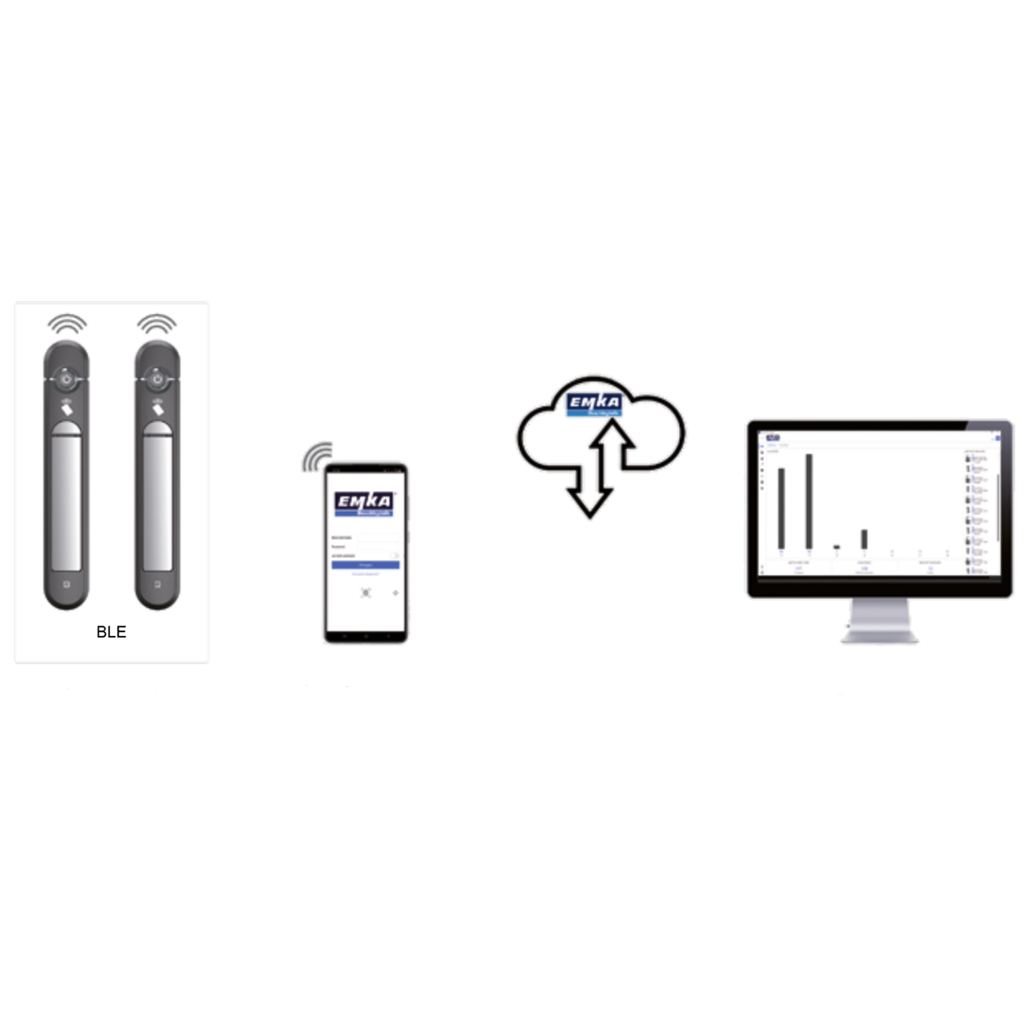

- Opening via smartphone and BLE connection with the “EMKA Smart Access Key” app, available for free download from the Play Store or App Store
- Automatic logging of all opening and locking processes in the cloud via the smartphone used
- Each customer receives their own cloud instance for their company to register and manage their handles via the EMKA Smart Access Manager software program An annual subscription for each swinghandle is mandatory.
- When purchasing Agent E BLE, the license fee for the cloud usage in the current year of registration is included. After that, an annual fee per swinghandle is payable for continued use.

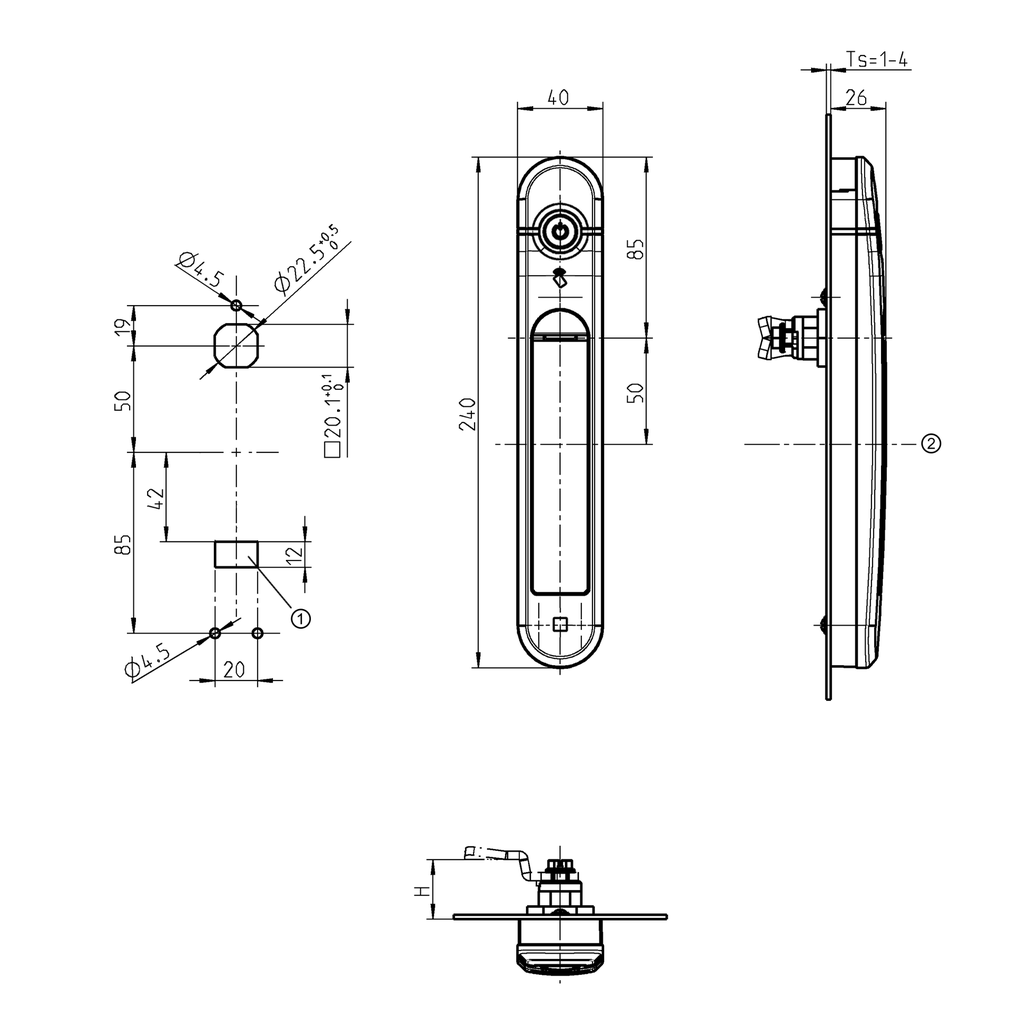

1 = Required for door contact
2 = Centre door
Riferimento interno:
3000-U961-42
Codice a barre:
3000-U00961-0000042
Tipo di prodotto:
Maniglia girevole, maniglia a leva
Programma:
3000
Pagina catalogo:
9A-130
Materiale dell'unità :
zama alluminio brillante verniciato a polvere e poliammide GF
Superficie dell'unità:
nero
Misura A, variabile:
25 mm
Piegatura variabile:
Sì
Numero dei punti di chiusura possibili:
1 punti, 2 punti, 3 punti, 4 punti, più di 4 punti disponibili a richiesta
Posizione di installazione :
all'interno della guarnizione
Misura GH:
18 mm
Tipo di maniglia:
Maniglia girevole
Apertura di emergenza:
Sì
Adatto per spessore porta da:
1 mm
Adatto per spessori di porta fino a:
4 mm
Chiusure:
Apertura con funzionamento elettromeccanico
Maniglia girevole altezza davanti alla porta:
26 mm
Lunghezza della maniglia girevole:
240 mm
Senso di apertura della porta :
sinistra,destra

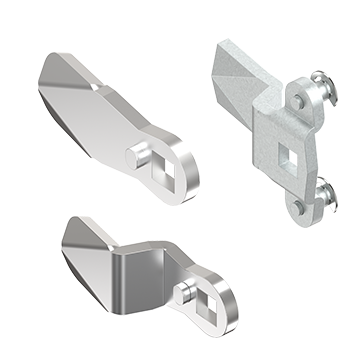

Componente di chiusura:
Linguetta
No Specifications
Nessun prodotto abbinato
Qui sono disponibili le schede tecniche e i file CAD di questo prodotto.
