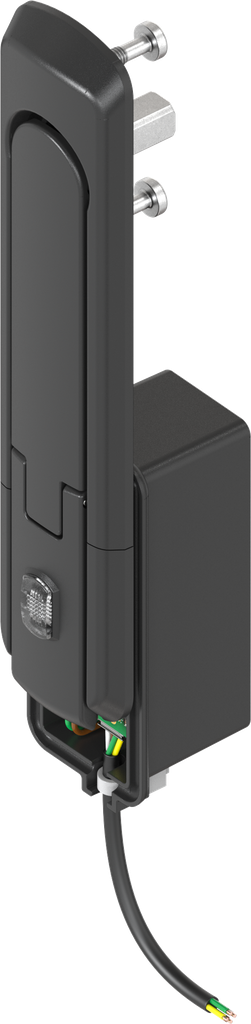

Maniglia girevole sottile con funzionamento elettromeccanico, zama nero verniciato a polvere; 2225-U4

• Flat design
• Suitable for standard cut out
• Swinghandle and dish pre-assembled
• Permanent magnet holds the insert cover
• Integrated scratch protection prevents surface damage
• Swinghandle, locking set and adapter for cam made of zinc die

④ = yellow contact

Cable length 3 m
Reed switch 30 V DC max. 0.5 A
Power-on time 100% (unlimited)

This handle is suitable for locking cabinets indoors.

A cam can be used for door thicknesses from 1.8 mm to 3.0 mm.

The handle is enabled by applying a 12 V voltage signal. The LED lights up green to indicate that the handle is enabled.

If the push button under the cover is now pressed, the handle pops out of the dish. The door is locked or unlocked by turning the handle. To close, simply press the handle into the dish.

The built-in reed contact is used for remote monitoring of the handle status (swinghandle engaged in the dish or swung out)
