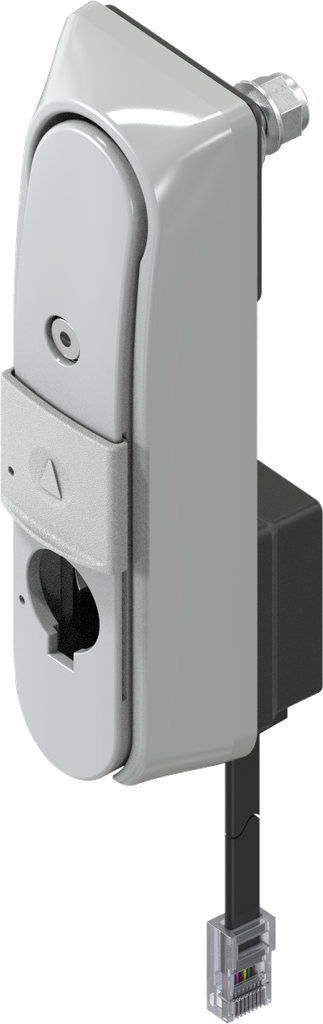

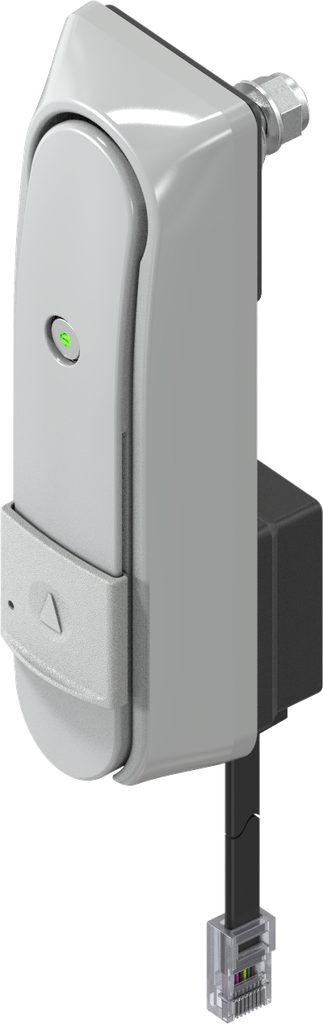

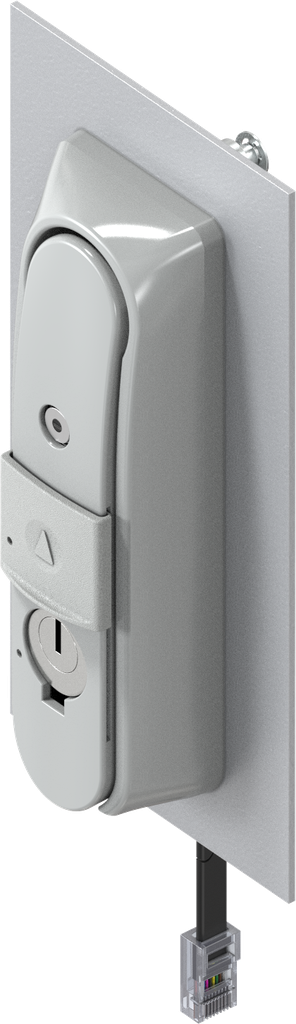

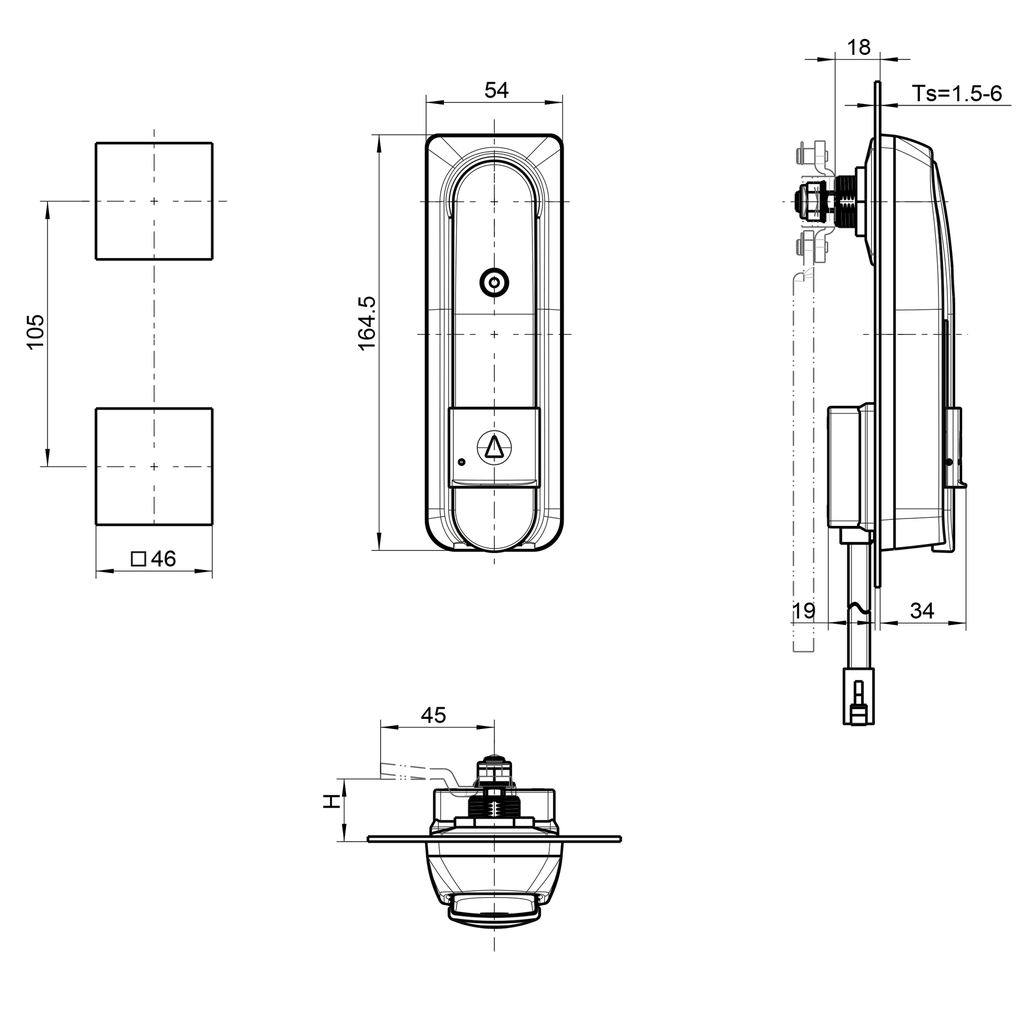

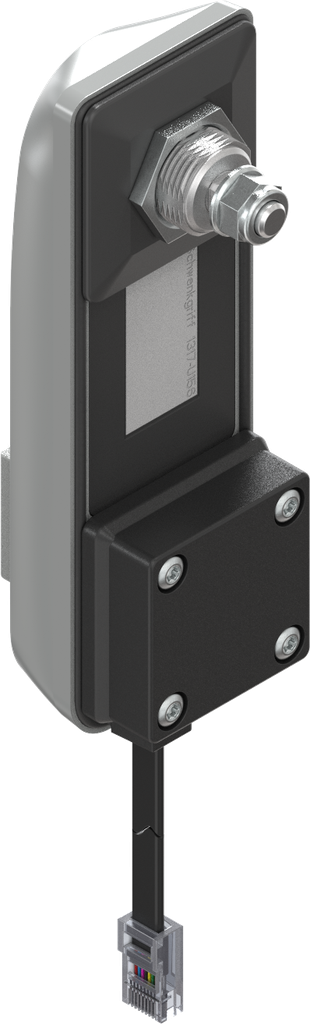

Maniglia girevole "corta" con RC2, con apertura a funzionamento elettromeccanico e per cilindro KABA tipo 1514, zama grigio verniciato a polvere RAL 7038; 1317-U156-BO
per linguetta
Vantaggi del prodotto:
- The swinghandle has successfully passed the RC2 DIN EN 1630 test
- The test protection class IK 10 according to DIN EN 50102 was successfully passed
- Integrated scratch protection prevents surface damage (handle / dish)
Indicazioni prodotto:

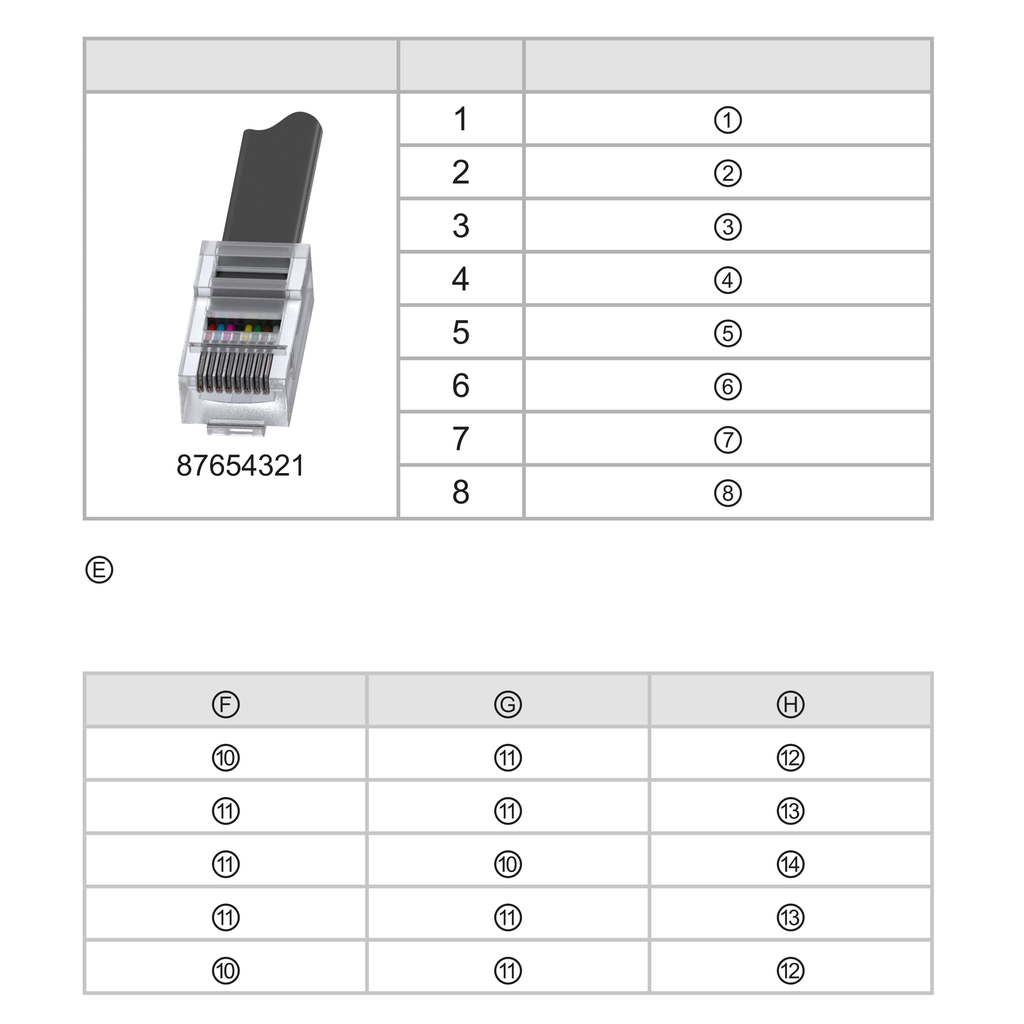

1 = white = motor V +
2 = brown = V -
3 = green = LED V +
4 = yellow = reed contact
5 = grey = -
6 = pink = motor position 1
7 = blue = motor position 2
8 = red = push button
E = The pins 4, 6, 7, 8 must be provided with a pull-up resistor, pin 5 can be provided with a pull-up resistor. The motor must be directly controlled by a higher-level controller and can only be moved in one direction. To set the lock in the required status (locked/unlocked), not only the motor must be controlled, but also the motor position switches must be interrogated and evaluated. The following table serves to identify the corresponding status.
F = motor position 1
G = motor position 2
H = handle status
10 = logical 0
11 = logical 1
12 = locked
13 = not defined
14 = unlocked
RC2 DIN EN 1630, is achieved with profily half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with the attacking resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.
Note: Without profile half cylinder opening is only possible with key 1004-44-01AA.
Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close
Sealable: Yes
Application range: Indoor and outdoor at -30°C up to +80°C
Connection type: Plug RJ45 with connection cable (4 m)
Release: By applying a 3 - 3.6 V DC signal
Wake-up function: Yes, by push button
Display: LED
Remote monitoring: By built-in reed contact
Locking: Push handle into recess until locking mechanism engages
Emergency opening: Optional with 40 mm or 45 mm profile half cylinder
Ts > 6 mm - 8 mm on request
Whether the handle is open can be queried via a reed contact.
The push button can be used for interaction in any form, as well as the LED for indication in any way.

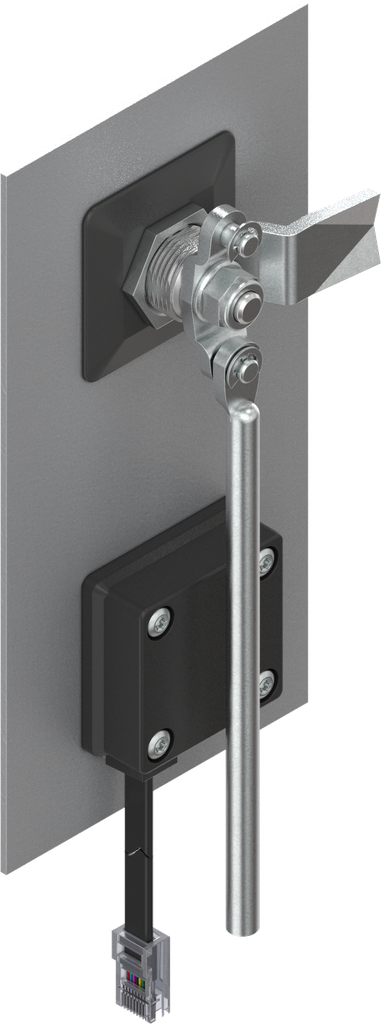

Istruzione di assemblaggio:
In case of the mechanical and the electromechanical model, only type KABA 1514 can be used.
