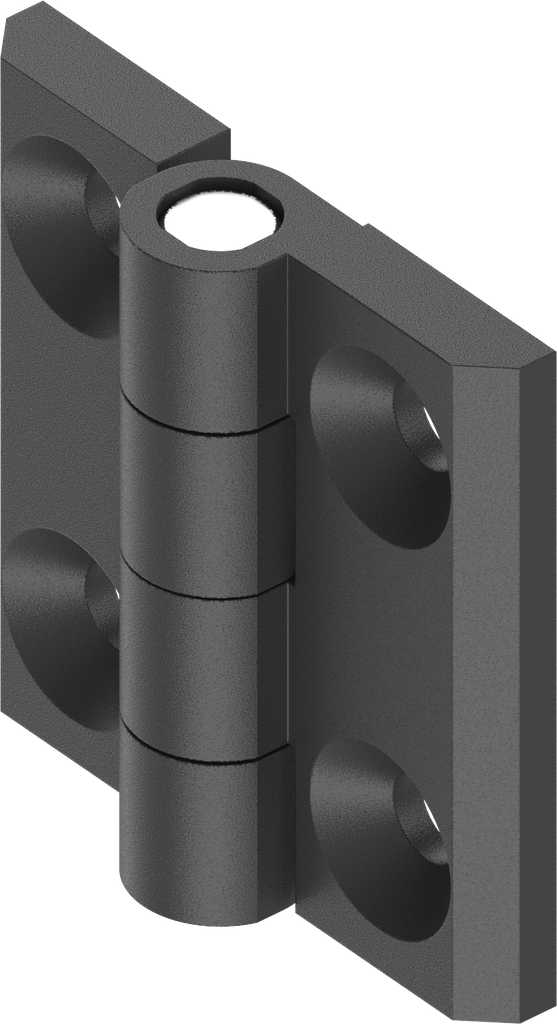

Cerniera frizionabile 180° 2 Nm, zama nero verniciato a polvere; 1056-U110
Dimensione 50 x 50 mm
Articolo non disponibile in magazzino, si prega di chiedere la disponibilità
Vantaggi del prodotto:
- Holds any position continuously at adequate load
- Constant torque across 180° adjustment range
- Same torque while opening and closing
- Compatible with all hinges of the 1056 Program with identical cut out
- Can replace door stops, cover stays or gas springs depending on installation location
Indicazioni prodotto:
Design / Calculation:
The number of hinges for covers depends on the size and weight of the cover. We are pleased to help you with the dimensioning of the hinges on request.
Torque hinge
The hinge can be set continuously in any position. There it remains in the same position. The torque is the same during opening and closing.
Technical data:
10,000 cycles at 180° open-close.
Also available with 1.0 Nm on request.
Osservazione:
Nm = 2.0
Tolerance ± 25 %
