quart de tour à clé, clé différente, zamak époxy noir
zamak époxy gris RAL 7038
Avantages du produit:
- Cost savings due to assembly and disassembly without tools within seconds
- Optionally available with polyamide or steel cam
- Suitable for many standard cams
- Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
- Smooth operation (no inner rotation due to design)
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented

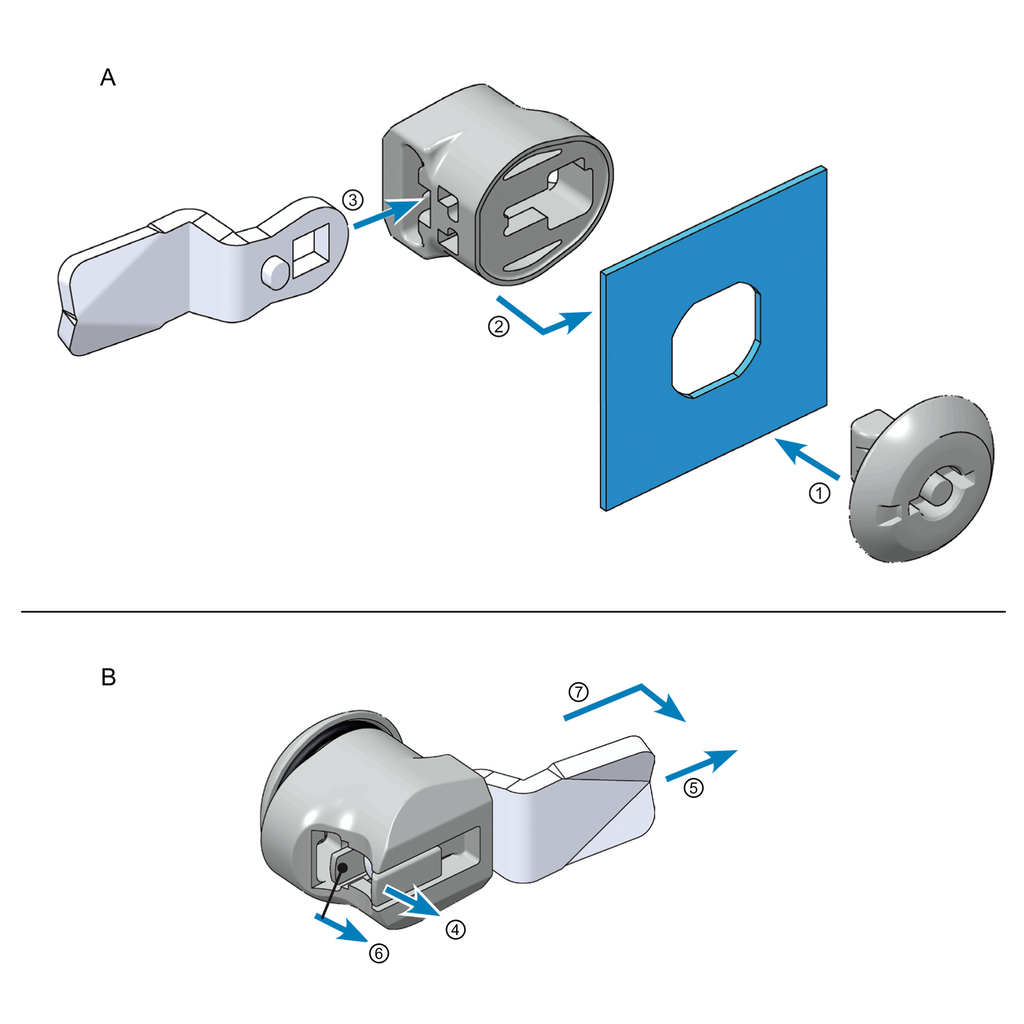

Conseil de montage:
- Assembly door stop on the right:
Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing. - Assembly door stop on the left:
Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
Référence interne:
1000-U873-BQ
Normes:
indice de protection IP 69K
Code-barres:
1000-U00873-00000BQ
Type d'article:
rotor
Programme:
1000
Matériel de l'assemblage :
polyamide GF
Surface de l'assemblage:
gris poussière
Nombre de points de fermeture possibles:
1 point
Article protégé par un droit de protection:
Oui
Rotor pour:
Insert for housing with quick mounting
Type de rotor:
double barre 5
Pour cote GH:
18 mm
Serrures:
rotor
