Cylindre à quart de tour, version droite avec 2 clés, zamak chromé
zamak époxy gris RAL 7038
Avantages du produit:
Cost savings due to assembly and disassembly without tools within seconds. Optionally available with polyamide or steel cam. Suitable for many standard cams. Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast. Smooth operation (no inner rotation due to design) Self-sealing design for highest protection requirements (design immanent) Increased safeguarding against overwinding Standard cut out PatentedNote sur le produit:
Door gauge incl. surface coating A = Assembly ① = Insert the insert part into the cut out ② = Place the click-in housing and shift it laterally ③ = Insert the cam into the click-in housing acoustic and visual verification of clicking in place of click-in housing B = Disassembly ④ = Lift locking arm of the cam ⑤ = Pull out the cam of the click-in housing ⑥ = Lift locking arm of the click-in housing ⑦ = Shift the click-in housing laterally and remove itConseil de montage:
Assembly door stop on the right: Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing. Assembly door stop on the left: Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
Référence interne:
1000-U873-BQ
Normes:
indice de protection IP 69K
Code-barres:
1000-U00873-00000BQ
Type d'article:
rotor
Programme:
1000

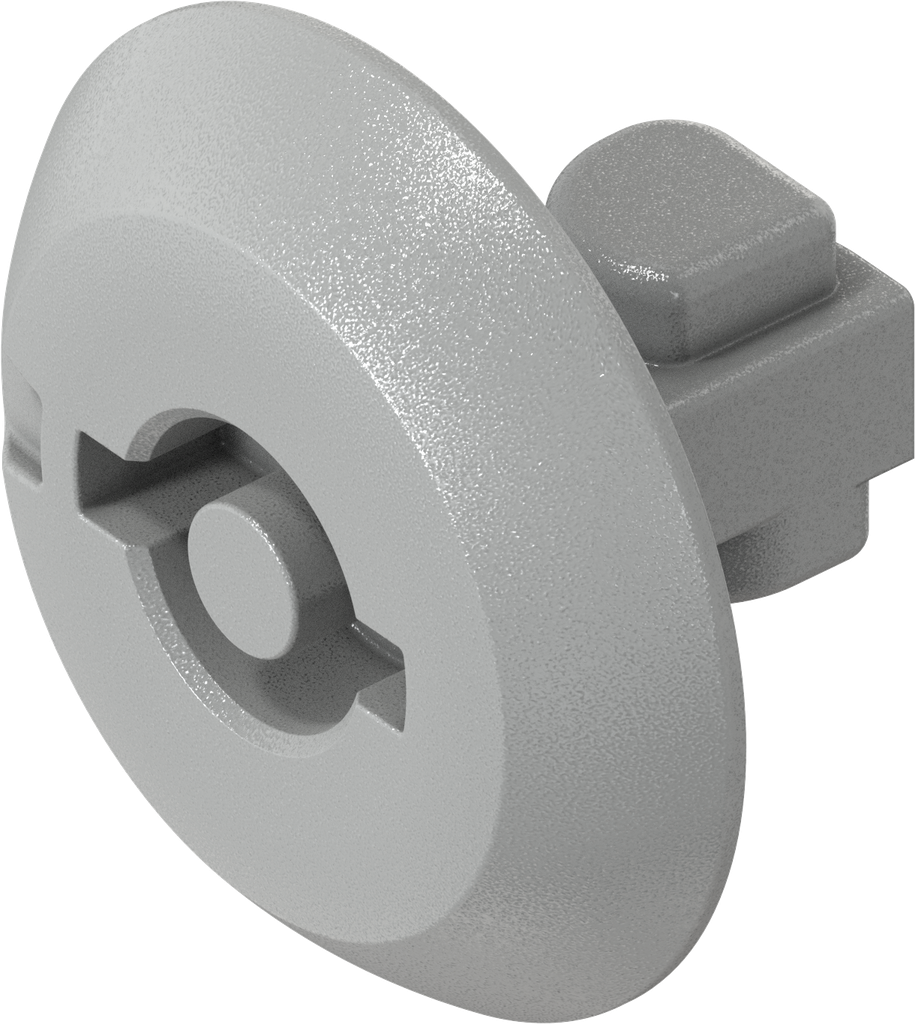

Matériel de l'assemblage :
polyamide GF
Surface de l'assemblage:
gris poussière
Nombre de points de fermeture possibles:
1 point
Article protégé par un droit de protection:
Oui
Rotor pour:
Insert for housing with quick mounting
Type de rotor:
double barre 5
Pour cote GH:
18 mm
Serrures:
rotor
No Specifications
